Analog-to-Digital Converters (ADC) – Training module (ref: EDD038100)
Training module for the study of Analog-to-Digital Converters:
▪ Sample & Hold circuit.
▪ Single or dual slope converter.
▪ Counting converters.
▪ Built-in converters. -

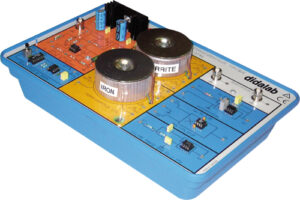

Core transformers – Training module (ref: PED037460)
Typical experiments:
▪ Recording of variable frequency hysteresis loops.
▪ Recording of the first magnetization curve.
▪ Display of integrated multiplier instantaneous power.
▪ Measurement of the average power by low-pass filter. -

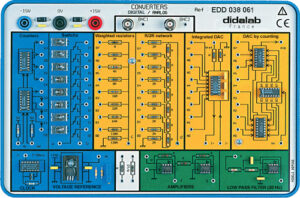

Digital-to-Analog Converters (DAC) – Training module (ref: EDD038060)
Training module for the study of 8-bit Digital-to-Analog circuits:
▪ Conversion with weighted resistors.
▪ Conversion with R/2R resistors network.
▪ Conversion by counting.
▪ Conversion by DAC0800 integrated circuit. -
Electronic sensors – Training module (ref: PED037900)
Study of the main optoelectronic sensors, applications such as:
▪ Light gates.
▪ Data transmission.
▪ Optical fiber telephone.
▪ Generation & detection of light pulses.
▪ Sound transmission by optic fiber.
▪ Digital data transmission.
▪ Study of transmission environment. -

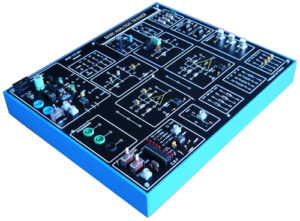

Basic analog functions – Training module (ref: EAD110000)
Training in basic electronic functions:
▪ Rectifier, filter, voltage control.
▪ Transistors amplifiers & multivibrators.
▪ Follower circuits, amplifiers, integrators, derivators, based on Operational Amplifiers.
▪ Study of low-pass filters, high-pass & bandpass filters.
▪ Built-in low-frequency generator: sine, square, triangle signals. -

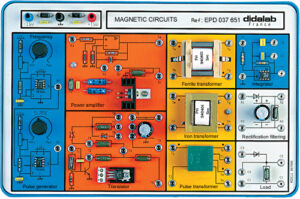

Magnetic circuits – Training module (ref: EPD037650)
Study of several magnetic circuits:
▪ Iron core transformer.
▪ Ferrite core transformer.
▪ Pulse transformer.Typical experiments:
▪ Inductance measurement of ferrite core circuit.
▪ Hysteresis loop.
▪ Flyback power supply. -

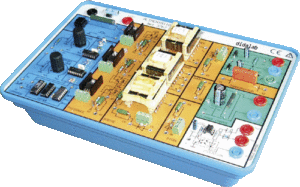

Switched-Mode Power Supplies (SMPS) – Training module (ref: PED037670)
Switch-Mode Power Supplies module, enabling the study of the following functions:
▪ Flyback power supply.
▪ Forward power supply.
▪ Push-Pull power supply.
▪ Inductive & capacitive storage choppers. -
Table for technical laboratories, ref EMO100000
Suitable for all your “low voltage” electrical engineering and telecommunications laboratories
Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket)
