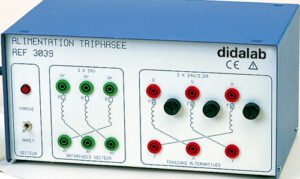

VLV 3-Phase supply – Power supply (ref: EMD030390)
Very low voltage three-phase power supply: 3x 24 VAC 2.5 Amps, specially adapted for the 3-phase rectifier study module, assisted inverter (ref: PED020600).
-

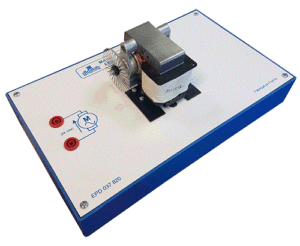

AC rotating machine 30 W – Load bench (ref: EPD037820)
→ AC rotating machines load bench (30 W).
This module is specially adapted to the experiments in Power electronics (self-controlled inverter) proposed with the 4-Q chopper / 1-phase inverter (ref: PED020420). -

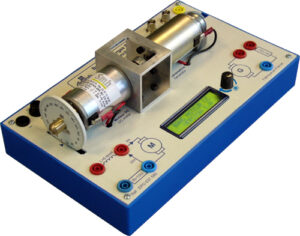

DC rotating machine 30 W – Load bench (ref: EPD037580)
DC rotating machines load bench, 30 W, constituted of two rotating machines coupled by Oldham joint. This bench is specially adapted to experiments in Power electronics in the 30-W range.
-

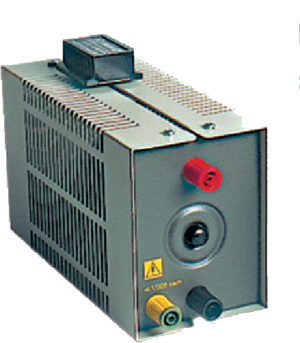

Rheostat – Load (ref: PMM064730)
Loading rheostat → 165 Ohms, 640 W.
-
Self – Load (ref: EPD037340)
Inductive load → 5 Amps, with 5 outputs (1 → 8mH).
This module is particularly adapted to experiments in Power electronics (30 & 120 W). -
Speed measurement – Module (ref: EPD037620)
Speed measurement module, for the DC rotating machine 30 W (ref: EPD037580).
-

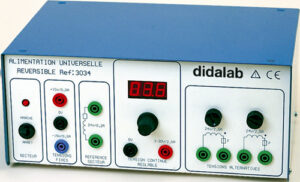

VLV 1-phase supply (+/-15V 500 mAmps, 0/30V 2.5 Amps) – Power supply (ref: EMD030340)
Very low voltage reversible power supply: +/-15V 500 mAmps, 0/30V 2.5 Amps, specially designed & adapted for the training modules in Power electronics. This power supply is particularly recommended for the 4-Q reversible chopper (ref.: PED020420).
