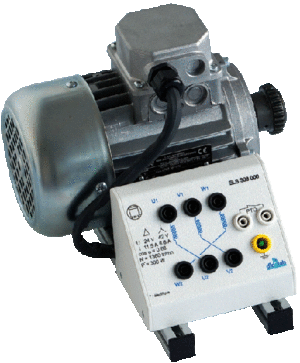

300-W / 3-phase squirrel cage asynchronous motor, ref ELS303000
SELV 3-phase asynchronous motor, squirrel cage, star or delta
-> Nominal pwer: 300 W
-> Nominal voltage: 24/42V -

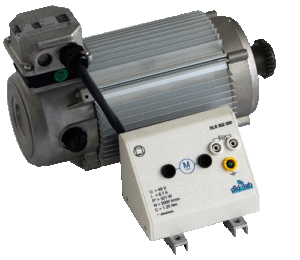

300-W / 48-Vdc motor with permanent excitation, ref: ELS302000)
DC motor, 48 VDC, with permanent excitation
-> Nominal current 6,7 A,
-> Speed 2.000 r/min,
-> Efficiency 77% -

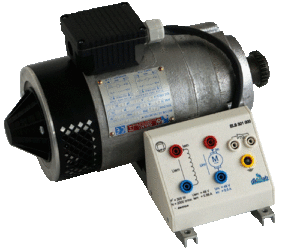

300-W / 48-Vdc motor with separate excitation, ref: ELS301000
DC motor, 48 VDC, with separate excitation
-> Nominal current 7.2 A, excitation 1.4 A
-> Speed 2.000 r/min, torque 1.87 Nm
-> Efficiency 65% -

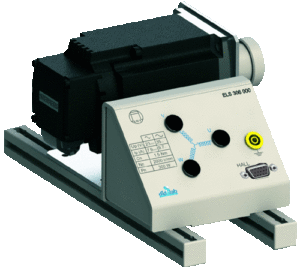

300-W / brushless motor, SELV, ref ELS306000
SELV Brushless motor :
-> Nominal power: 300 W,
-> Brushless sine 23 V or DC trapezoid 35 V,
-> Nominal currents: 7,9 Aac, 9,7 Adc,
-> Speed: 2000 rd/min, -
BICMAC-S300 Instrumented load bench for AC or DC machines – Motor/Load bench
ELS310000
The load bench BICMAC- S300 is specially designed for:
▪ Electrotechnics.
▪ Power electronics.
▪ Automatic control.
It works, in accordance with the standard SELV « Safety Extra-Low Voltage, 48 VDC and 24 VAC », at voltage rates avoiding to use complex and expensive electrotechnic tables. -
BICSIN-S300 Instrumented load bench for AC or DC machines – Motor/Load bench
ELS320000
The load bench BICSIN- S300 is specially designed for:
▪ Electrotechnics.
▪ Power electronics.
▪ Automatic control.
It works, in accordance with the standard SELV « Safety Extra-Low Voltage, 48 VDC and 24 VAC », at voltage rates avoiding to use complex and expensive electrotechnic tables. -
Capacitive Load (ref: EPD037360)
Capacitive load
This module is particularly adapted to experiments in Power electronics (300 W). -
Presentation of the SELV 300-W range
Booklet showing our products for electrical machines and power electronics in the SELV 300-W power range.
-

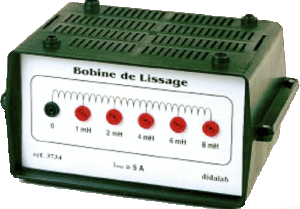

Self – Load (ref: EPD037340)
Inductive load → 5 Amps, with 5 outputs (1 → 8mH).
This module is particularly adapted to experiments in Power electronics (30 & 120 W). -
Table for technical laboratories, ref EMO100000
Suitable for all your “low voltage” electrical engineering and telecommunications laboratories
Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket)
