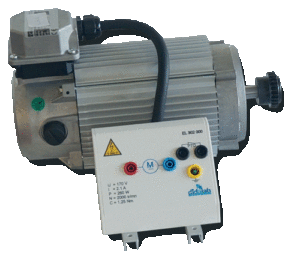

300-W / 170 Vdc motor with permanent excitation, ref EL302000
DC motor, Low Voltage, with permanent excitation
-> Power: 300 W
-> Nominal voltage: 170 Vdc
-> Nominal current: 2 A, -

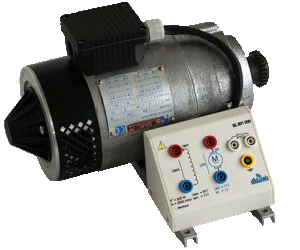

300-W / 170 Vdc motor with separate excitation, ref EL301000
DC motor, Low Voltage, with separate excitation
-> Power: 300 W
-> Nominal voltage: 170 Vdc
-> Nominal current: 2 A, -

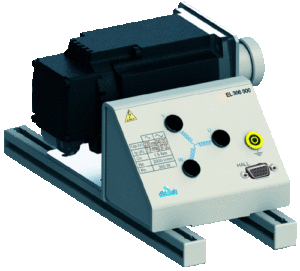

300-W Brushless motor, LV, ref EL306000
Low voltage Brushless motor
300 W -

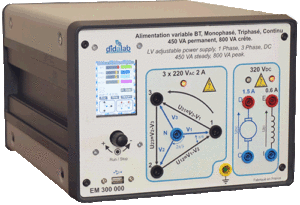

300-W Power supply, 3-phase AC, DC, Low Voltage
EM300000
LV power supply specially designed to carry out practical works on any power electronics bridge (1-/3-phase rectifiers, choppers, 1-/3-phase inverter).
Its output voltage comply with Low Voltage standard (3×220 Vac ; 340 Vdc)
It is plugged on mains (1-phv 220 V, 50 Hz). -

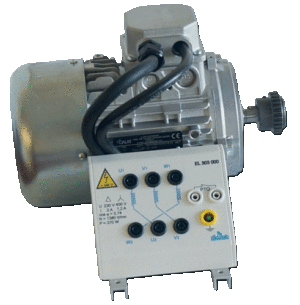

300-W, squirrel cage asynchronous motor, LV, ref EL303000
LV 3-phase asynchronous motor, squirrel cage, star or delta
-> Nominal power: 370 W
-> Nominal voltages: 240/400V
-> Nominal currents: 2.1A / 1.2 A, -

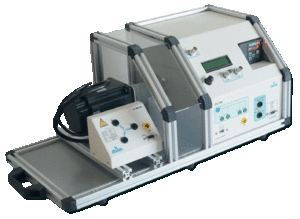

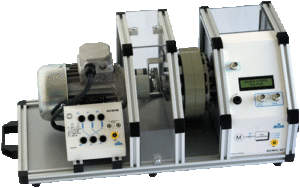

BICMAC-300 Instrumented load bench for AC or DC machines – Motor/Load bench
EL310000
The load bench BICMAC- 300 is specially designed for:
▪ Electrotechnics.
▪ Power electronics.
▪ Automatic control.
It works, in accordance with the standard LV (170 Vdc / 240 Vac) -

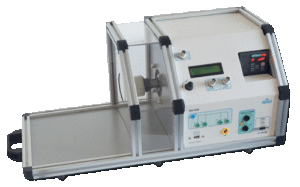

BICSIN-300 Instrumented load bench for AC or DC machines – Motor/Load bench
EL320000
The load bench BICSIN- 300 is specially designed for:
▪ Electrotechnics.
▪ Power electronics.
▪ Automatic control.
It works, in accordance with the standard LV (170 Vdc / 240 Vac) -
Capacitive Load (ref: EPD037360)
Capacitive load
This module is particularly adapted to experiments in Power electronics (300 W). -

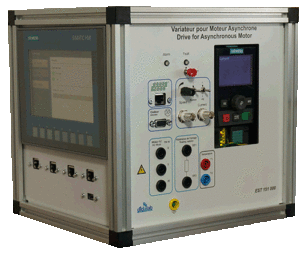

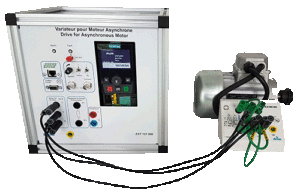

Cube-Elec 300: Pedagogical industrial motor drive, for Asynchronous motor
EST120000
Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control.
The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Asychronous motor -

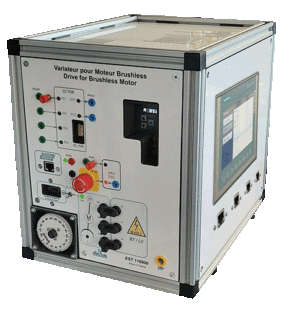

Cube-Elec 300: Pedagogical industrial motor drive, for Brushless motor
EST110000
Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control.
The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Brushless motor -

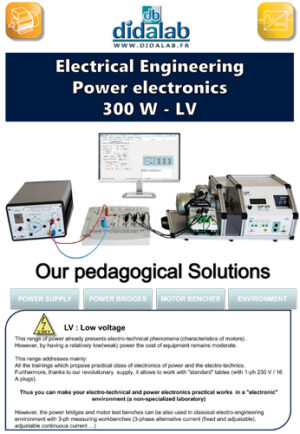

Presentation of the LV 300-W range
Booklet showing our products for electrical machines and power electronics in the LV 300-W power range.
-

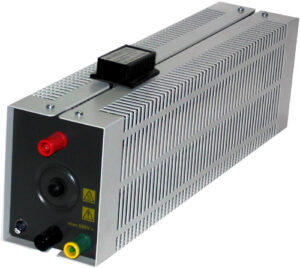

Resistive load, 320 VA 210 Ohm
ELD050000
320 VA Resistive load, with protecting fuse -
Table for technical laboratories, ref EMO100000
Suitable for all your “low voltage” electrical engineering and telecommunications laboratories
Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket)
