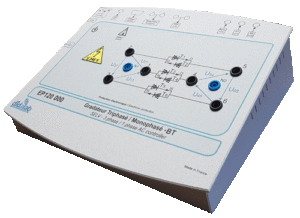

1-phase, 3-phase AC controller, 300 W (Ref : EP120000)
Study of:
1-phase upstream AC voltage controller:
▪ Phase-angle.3-phase upstream AC voltage controller:
▪ Phase-angle with neutral.
▪ Phase-angle with neutral.External control:
By electronic assembly +/-10 VDC -
300-W Power supply, 3-phase AC, DC, Low Voltage
EM300000
LV power supply specially designed to carry out practical works on any power electronics bridge (1-/3-phase rectifiers, choppers, 1-/3-phase inverter).
Its output voltage comply with Low Voltage standard (3×220 Vac ; 340 Vdc)
It is plugged on mains (1-phv 220 V, 50 Hz). -
BICMAC-300 Instrumented load bench for AC or DC machines – Motor/Load bench
EL310000
The load bench BICMAC- 300 is specially designed for:
▪ Electrotechnics.
▪ Power electronics.
▪ Automatic control.
It works, in accordance with the standard LV (170 Vdc / 240 Vac) -
BICSIN-300 Instrumented load bench for AC or DC machines – Motor/Load bench
EL320000
The load bench BICSIN- 300 is specially designed for:
▪ Electrotechnics.
▪ Power electronics.
▪ Automatic control.
It works, in accordance with the standard LV (170 Vdc / 240 Vac) -
Capacitive Load (ref: EPD037360)
Capacitive load
This module is particularly adapted to experiments in Power electronics (300 W). -

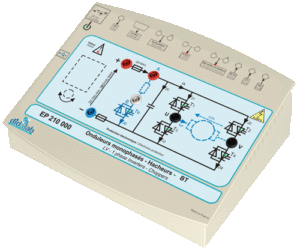

Chopper, 1-phase inverter, 300 W (ref: EP210000)
Study of:
Series and reversible choppers:
▪ Series.
▪ Voltage reversible.
▪ Current reversible.
▪ 4 quadrants.
▪ Double nested series (+E/0/–E).1-phase inverters:
▪ Full-wave shifted control.
▪ Variable frequency: PWM +E/-E, +E/0/-E.
▪ Constant U/F.Optional:
▪ D_CCA: speed servo-control (depending on the operative part).
▪ D_Scil: simulation, rapid prototyping, creation of new correctors. -

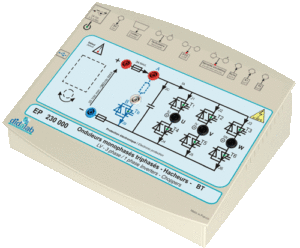

Chopper, 1-phase, 3-phase inverter, 300 W (ref: EP230000)
Study of:
Serial Choppers, reversible:
-> Serial
-> Voltage reversible
-> Current reversible
-> Four quadrants
-> Overfitted double serial (+E/0/–E)1-phase inverter:
-> Schift control full wave,
-> adjustable frequency: PWM +E/-E and +E/0/-E,
-> constant U/F ratio.3-phase inverter:
-> Schift control full wave,
-> adjustable frequency: PWM +E/-E and +E/0/-E,
-> constant U/F ratio.Important:
EP230 has been concieved to work with LV environment (Low voltage : 340 Vdc Max).
It is to be used for practical works or during a lecture course (with a computer and projector).Optional extra:
-> D_CCA, speed and position control (depending of the operative part),
-> EP230800, D_Scil : Module for prototyping with Scilab/XCOS, generation of real time new correctors. -
Cube-Elec 300: Pedagogical industrial motor drive, for Asynchronous motor
EST120000
Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control.
The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Asychronous motor -
Cube-Elec 300: Pedagogical industrial motor drive, for Brushless motor
EST110000
Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control.
The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Brushless motor -
Presentation of the LV 300-W range
Booklet showing our products for electrical machines and power electronics in the LV 300-W power range.
-

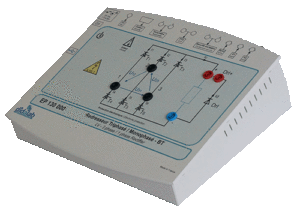

1-phase, 3-phase rectifier, 300 W (Ref : EP130000)
Study of :
1-phase rectifier:
-> all diodes,
-> Mixed symmetric, mixed and asymmetric,
-> all thyristors,
-> assisted inverter.3-phase rectifier:
-> all diodes,
-> Mixed,
-> all thyristors,
-> assisted inverter.Important :
EP130 has been concieved to work with LV environment (Low voltage : 3×240 Vac Max).
It is to be used for practical works or during a lecture course (with a computer and projector).Optional extra:
-> D_CCA, speed control (depending of the operative part),
-> EP130800, D_Scil : Module for prototyping with Scilab/XCOS, generation of real time new correctors. -
Table for technical laboratories, ref EMO100000
Suitable for all your “low voltage” electrical engineering and telecommunications laboratories
Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket)
