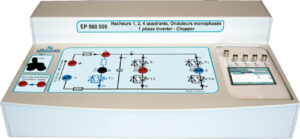

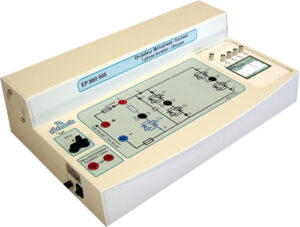

1.5/3 kW 1-/2-/4-quadrant chopper / 1-phase inverter – Training module (ref: EP560000)
Serial chopper voltage & current reversible, 4 quadrants, dual mixed 0 +E 0/ 0 –E 0, single-phase inverter; full-wave, PWM +/-E, +/0/-E, 1.5-kW operating power.
2 software are available as optional extras:
▪ EP560200, D_CCA: study of the servo-control of AC or DC motors.
▪ EP560800, D_Scil: automatic generator of real-time correctors with Scilab/Xcos®. -

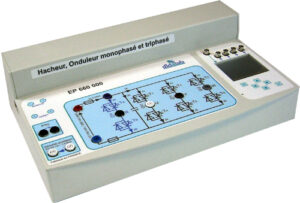

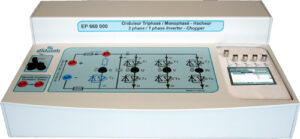

1.5/3 kW 1-/2-/4-quadrant chopper, 1-/3-phase inverter – Training module (ref: EP660000)
Serial chopper voltage & current reversible, 4 quadrants, dual mixed 0 +E 0 / 0 –E 0, single-phase inverter; three-phase inverter, full-wave, PWM, switched control, PWM +/-E, +/0/-E, operating power: 1.5 kW.
2 software are available as optional extras:
▪ EP660200, D_CCA: study of the servo-control of AC or DC motors.
▪ EP660800, D_Scil: automatic generator of real-time correctors with Scilab/Xcos®. -

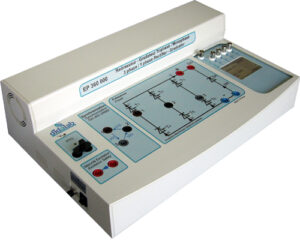

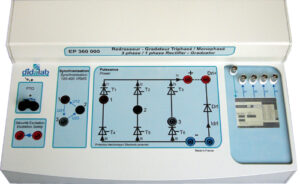

1.5/3 kW 1-/3-phase rectifier / AC contoller – Training module (ref: EP360000)
▪ Single-phase, three-phase rectifier, AC voltage controller, assisted inverter
▪ Many measuring probes.
▪ Many securities (protection against short-circuits, constant supervision of power supply, supervision of the excitation current…) -

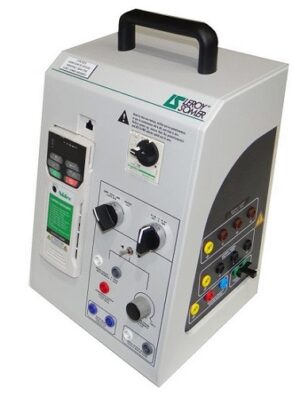

Speed variator for 1.5kW 3-phase asynchronous motor, DIGIDRIVE SK (ref : ELD155000)=(ref : ELT151450)
Training version of an industrial speed variator, vector control, 4-quadrant operation, controlled by PC.
Energy acquisition and evacuation on external load rheostat bridge.
