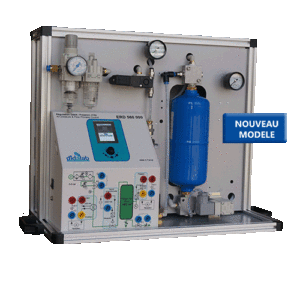

Air pressure Process Control (ref ERD560000)
Air Pressure process control (time constant : about 14s), with a experiment chamber of 1000 cm³,
-

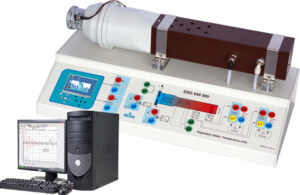

Air temperature and Air flow process control (ref: ERD540000)
Module for the study of an air temperature process control, cascade control of flow and temperature control. The flow sensors and temperature sensors are industrial sensors and have 4/20 mA interface.
The embedded controller enables the study of P, I, D, digital Z, fuzzy logic, etc correctors..
As an optional extra, D_Scil, for prototyping and creation of real-time correctors. -

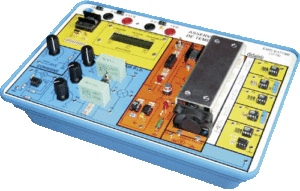

Mini-oven temperature (electronic PID corrector) – Training module (ref: ERD037780)
Training module of a mini oven temperature control, electronic PID controller corrector, forced ventilation disturbance.
-
Table for technical laboratories, ref EMO100000
Suitable for all your “low voltage” electrical engineering and telecommunications laboratories
Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket) -

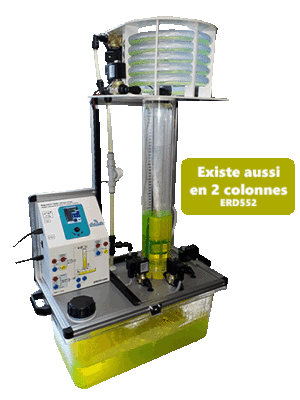

Water level and Water flow process control (ref: ERD551000)
ERD551000:
Module for the study of Water level and Water flow process contrl, with 1 column, and with a pure delay. The level and flow sensors are of industrial type and are directly interfaced in a 4/20-mA current loop.
Exists also with 2 columns (ref ERD552000) -

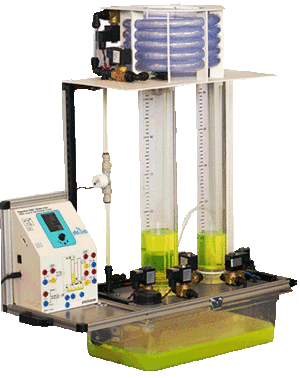

Water level and Water flow process control (ref: ERD552000)
ERD552000:
Module for the study of Water level and Water flow process contrl, with 2 columnS, and with a pure delay. The level and flow sensors are of industrial type and are directly interfaced in a 4/20-mA current loop.
Exists also with only 1 column (ref ERD551000)
