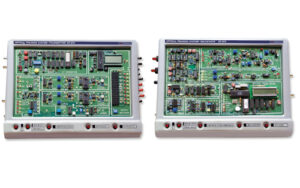

Fiber optics communications – Training modules (ref: ETD038600)
The emitter module of optical communication includes 6 different photoemitting stations, 2 lines can be simultaneously activated for the applications PWM.
The receiver consists essentially in 2 blocks: 1 for the signal processsing and 1 for the measurements of the optical power. -
Real-time DSP signal processing, rapid prototyping, graphical compiler – Training module (ref: ETD410000)
ETD410 module to study signal processing and rapid DSP prototyping:
▪ Signal theory, IIR/FIR filters, sampling, quantization.
▪ Digital transmission, information theory and coding.
▪ Identified characteristics of a filter or a servo-system (Bode diagram, Nyquist diagram,…).

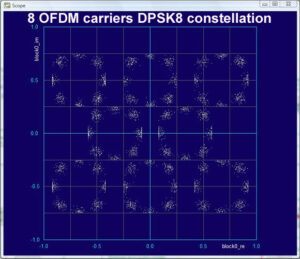

▪ Embedded real-time instrumentation (text terminal, 8-channel oscilloscope (with XY mode, constellation), spectrum analyzer, recorder, sine/triangle/IQ generator…).
▪ Modulations: AM, FM, ASK, PSK, BPSK, DPSK, QPSK QAM,…Important:
The ETD410 module is specially designed to be used for practical works as well as for class illustration/demonstration (via PC + videoprojector). -

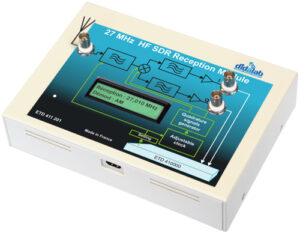

SDR receiver HF 27 MHz (long waves, short waves, IQ demodulator) – Expansion module (ref: ETD411200)
SDR Radio receiver (expansion module for the ETD410) → HF 27 MHz.
Transposition of the IQ message with SDR technology (Sofware Defined Radio).
Transposition of the HF to IQ IF with SDR technology (Sofware Defined Radio).
Demodulations and decoding are processed with the basic module ETD410000:
▪ Analog demodulations: AM, FM, SSB.
▪ Digital demodulations: ASK, FSK, QPSK, QAM…
▪ Decoding: AMI, RZ, NRZ, Manchester…
The conversion of the signals is done with 24-bit 192-kHz CODECs -

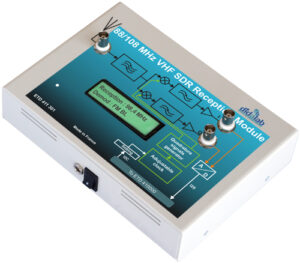

SDR receiver VHF 88/108 MHz (IQ demodulator) – Expansion module (ref: ETD411300)
SDR Radio receiver (expansion module for the ETD410) → VHF 88/108 MHz.
Transposition of the HF to IQ IF with SDR technology (Sofware Defined Radio).
Modulations and coding are processed with the basic module ETD410000:
▪ Analog demodulation: FM, mono & stereo.
▪ Digital demodulation: RDS.
The conversion of the signals is done with 24-bit 192-kHz CODECs -

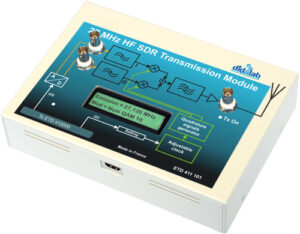

SDR transmitter HF 27 MHz (IQ modulator) – Expansion module (ref: ETD411100)
SDR Radio transmitter (expansion module for the ETD410) → HF 27 MHz.
Transposition of the IQ message with SDR technology (Sofware Defined Radio).
Transmitting power (max): 10 mW.
Modulations and coding are processed with the basic module ETD410000:
▪ Analog and Digital modulations: AM, FM, SSB.
▪ Digital modulations: ASK, FSK, QPSK, QAM…
▪ Coding: AMI, RZ, NRZ, Manchester…
The conversion of the signals is done with 24-bit 192-kHz CODECs -
