Real-time DSP signal processing, graphical software – User manual (ref: ETD410041)
For the ETD410 module :
▪ Extract from the user manual of the Real-time DSP signal processing kit.
▪ User exemples.
▪ Complete listing of the graphical functions (FibulaG software).
▪ Possibility to create new graphical functions. -

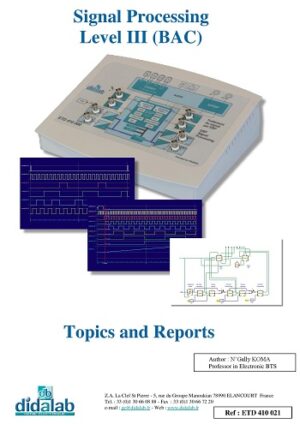

Real-time DSP signal processing, level III CITE (high school) – Practical works manual (ref: ETD410021)
For the ETD410 module .
The topics from the manual are intended for students from technological high schools (international level III):
▪ Master/Slave RS/JK flip-flops and D flip-flop.
▪ Synchronous Binary-to-Decimal up/down counters.
▪ Digital-to-Analog Counters (DAC) & Analog-to-Digital Counters (ADC).
▪ Tracking converter, semi-flash ADC.
▪ Analog filters. -

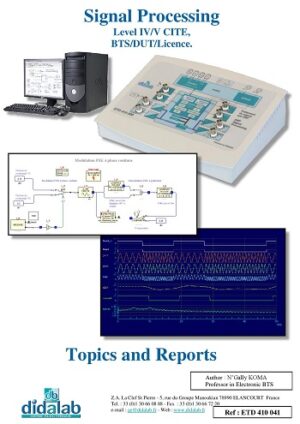

Real-time DSP signal processing, level IV/V CITE (higher education) – Practical works manual (ref: ETD410041)
For the ETD410 module .
The topics from the manual are intended for students from technological high schools (international levels IV and V).
▪ FIR/IIR digital filters
▪ Reminder on analog modulations
▪ AM/FM analog modulations
▪ Sampling: Nyquist-Shannon theorem
▪ Baseband transmission, coding, power spectral density (FFT)
▪ Reminder on digital modulations
▪ Digital modulations: ASK, FSK, PSK, QAM
