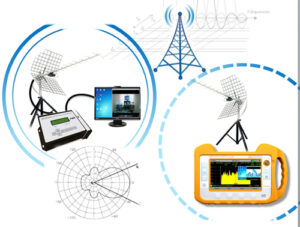

Antenna study, radiation pattern – Laboratory (ref: ETV110110)
Study module of a radiation pattern of Yagi antenna in the HF/VHF bandwidth: 30 → 960 MHz.
▪ Horizontal pattern plot
▪ Vertical pattern plot
▪ Polarization -

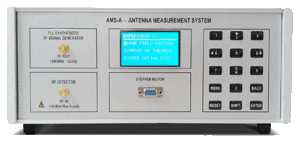

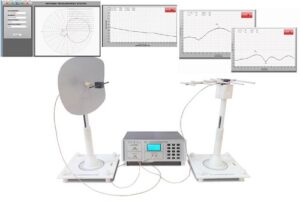

Antenna trainer
ETD700000
This training system can be used to teach all types of antenna measurements.
Measure the variation of field strength/inverse square law, Prove the reciprocity theorem of antenna, Plot Radiation pattern, Measure co-polarization, cross polarization … -

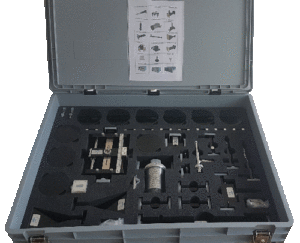

Guided electromagnetic waves study – Training set : PED022000
This set is designed to study guided electromagnetic waves in microwave frequency using “X” band: 8,5 → 11,5 GHz.
It includes:
▪ GUN diode oscillator and its power supply.
▪ PIN diode modulator.
▪ Crystal detector.
▪ Fixed attenuator, variable attenuator.
▪ Transmitter cornet, receiver cornet.
▪ Wave meter.
▪ Accessories. -

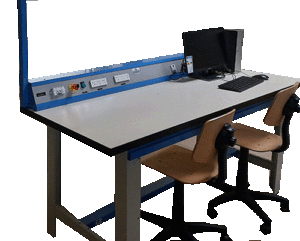

Table for technical laboratories, ref EMO100000
Suitable for all your “low voltage” electrical engineering and telecommunications laboratories
Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket)
