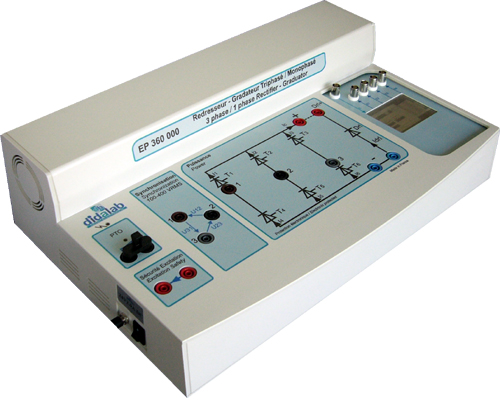

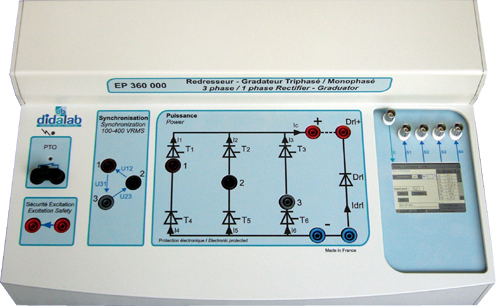

1.5/3 kW 1-/3-phase rectifier / AC contoller – Training module (ref: EP360000)

Specifications:

Functions:

▪ 1-phase rectifier: all-diodes, all-thyristors, mixed and symmetrical, mixed and asymmetrical.
▪ 3-phase rectifier: all-diodes, mixed, all-thyristors.
Others:
▪ Assisted inverter
▪ 3-phase mixed AC controller
▪ 3-phase all-thyristors AC controller
▪ 1-phase AC controller

Securities:

▪ Excitation power-cut
▪ Bolted output voltage (protection of the load)
▪ Electronic protection against short-circuits
▪ Constant supervision of the peak currents, and of the average current in the load
▪ Insulated outputs in each branch
▪ Insulated outputs for the thyristorized controls

Optional extras:

EP360200: software module for the speed servo-control of a DC 1.5-kW motor
EP360800: module for prototyping with SCILAB/XCOS
