4 ON/OFF CAN LIN outputs – Expansion board (ref: EID051000)

Specifications:

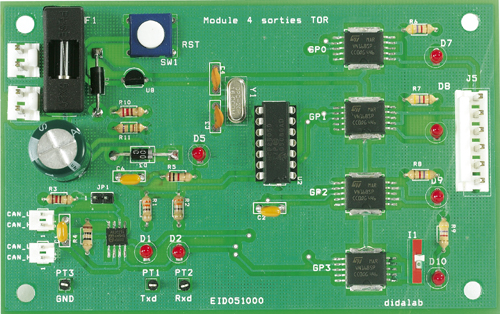

The EID051000 interface board controls the car optical devices in normal operating mode.

▪ LEDs enable the operation in simulation mode.
▪ 1 microswitch simulates the light filament braking in order to implement the light bulbs test programming modules.
▪ 1 MC25050P CAN expander (Microchip), layers 2 & 3 ensures the digital information output & the CAN program interface.
▪ The 82C250 line transceiver, layer 1, ensures the line interface.
▪ 4 VN016 power amplifiers ensure the current amplification of the 4 output bits intended to the optical set filaments.
