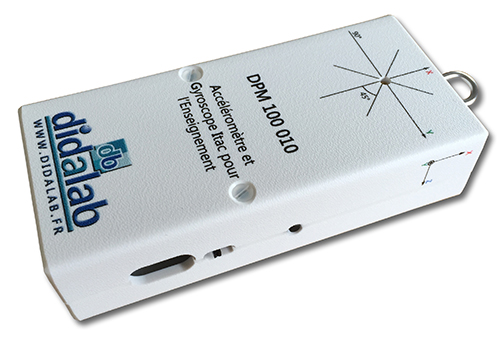

Accelerometer, AGILens : DPM100010

The accelerometer AGILens is a 3-axis sensor, usig vibrating beams technology.
We’ve added a MEMS gyroscope in order ot get the rotation information. These 2 technologies are used in a lot of todays’ equipment ; the idea is to propose a coherent set, with an up-to-date technology that the students come across everyday.

This accelerometer is ideal fr the free fall experiments (with protective cover), with a launcher, a pendulum, a vibration table, or an air track (equipment to add).

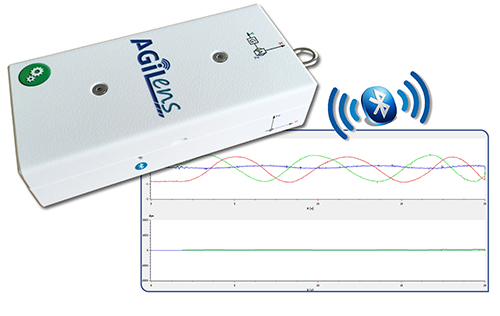

With the wireless transmission (Bluethooth), you can use it in any conditions.

With the rechargeable Lithium battery, you can experiment during 4 hours without stop (about 8-hour autonomy).

With the program , you can display and use all the data needed in acceleration and rotation.

Characteristics :
– 3-axis Accelerometer / gyroscope
– wireless (Bluetooth technology)
– 2 measuring ranges: 2g or 8g and 2000 degree/second
– Selection of the axis with the program
– Program in French and in English, operating with Windows
– data can be exported to txt, xls, regressi, bmp files …

Composition :
– Accelerometer / 3-axis gyroscope
– USB cable
– hanging hook

Accessories (not included) :
– rubber ball with a hole for the accelerometer (for free fall, bouncing study for example)

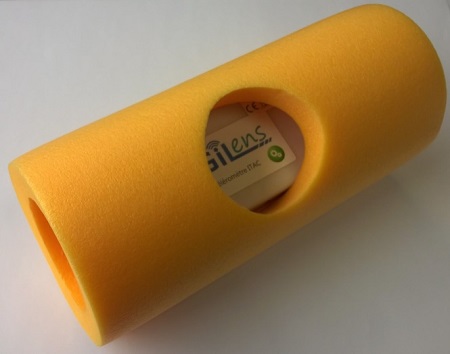

– rubber cylinder (for experiment with titled plane for example)
– rubber rugby ball
