Air pressure Process Control (ref ERD560000)

It is composed of :

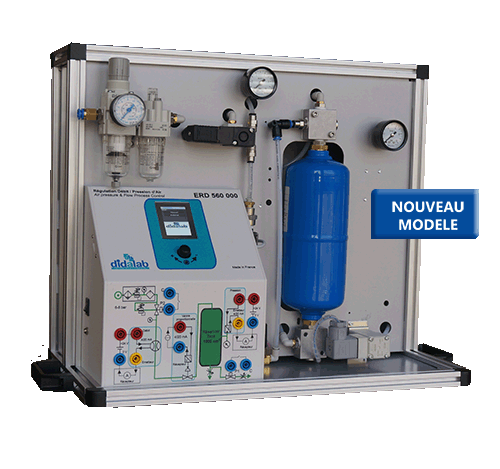

A actuator part for air Pressure process control (time constant : about 14s), with a experiment chamber of 1000 cm³,
The control pannel is included.
It displays a didactic mimic-layout, with all necessary connections for linking sensors and actuators, and built-in power supply.
Compatible with all controllers providing 4/20 mA inputs/outputs

With its specific software, the unit enables the study of P, I, D, correctors, Z transform, fuzzy logic, dead time compensation, development of new correctors

• Study of the current loop,
• Test in Open Loop of a pressure control,
• Pressure control with corrector : P, P I, PID, Z transform,
• Simulation of a process.
