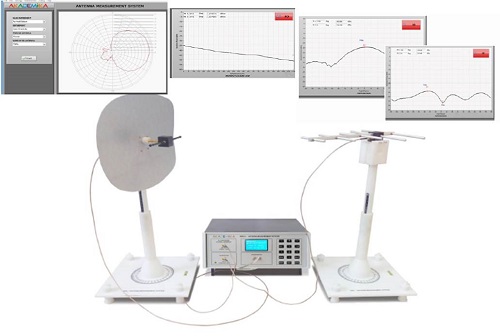

Antenna trainer
ETD700000
This training system can be used to teach all types of antenna measurements.
Measure the variation of field strength/inverse square law, Prove the reciprocity theorem of antenna, Plot Radiation pattern, Measure co-polarization, cross polarization …
Technical specifications:

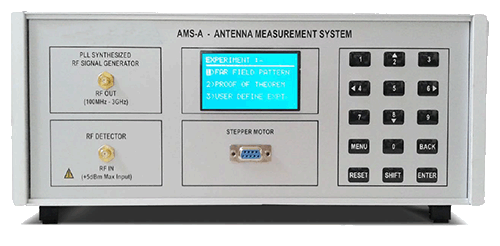

RF Transmitter
Source type: PLL Synthesize with Integrated VCO
Frequency range: 100 MHz to 4 GHZ
RF Detector
Detector type: Logarithmic detector
Frequency range: 100 MHz to 8 GHZ
Antennas (22 antenna supplied):
