Digital logic – Training module (ref: EDD120000)
The EDD120000 digital logic simulator module is an extension module of the EDD100000 combinatory logic simulator.
It enables the study of combinatory circuits (amplifiers, open collectors & 3-state logic) and digital functions (comparators, shift registers, up/down counter, ALU).
Complete practical works (questions & solutions) are provided with the equipment.
Specifications:
Amplification functions:

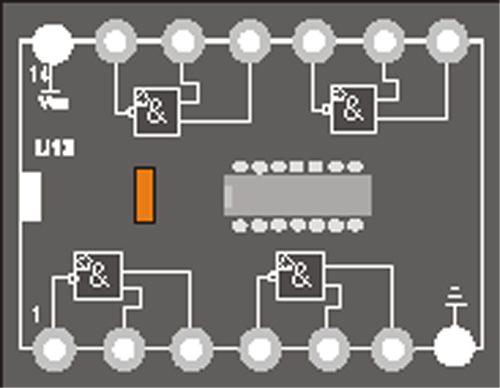

▪ 4 NAND with 2 inputs, open collector & 4 pull-up resistors.
▪ 2x 4 buffers (3 states) with common control.
Digital:
▪ 2 demultiplexer circuits (2 to 4).
▪ 2 multiplexer circuits (4 to 1).
▪ 1 parallel/serial shift register.
▪ 1 programmable up & down counter.
▪ 1 ALU (arithmetic logic unit): 8 operations (set, reset, addition, substraction A-B & B-A, OR, AND, XOR).
Service:
▪ 5 Vdc external Power Supply from the EDD100000 module.
▪ 7-segment display device with decoder.
▪ 3 switches to program 0 or 1 levels.
