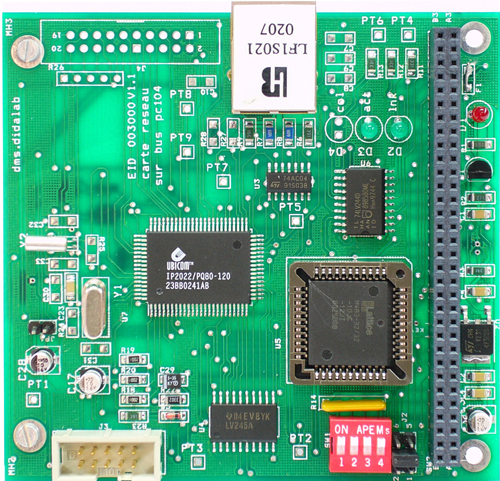

Embedded Web server – Expansion board (ref: EID003000)
Embedded Web server expansion board, enabling the implementation (through PC/104 standard connection) of a modern system equipped with one embedded Web server, that can be remotely consulted via Internet.
Specifications :
Specifications:
The EID 003 000 Web server board is issued at PC/104 industrial standard. It can be plugged onto the EID 210 000 basic board or on any other board equipped with this bus.
The board uses the IP2022 µcontroller (Internet processor), developped by UBICOM and is operating on the Ethernet network (10 Mbits/s).
The program drivers are provided: TCP/IP stack, sockets, Web server, SPI bus, I2C, integrated « ping » function.
▪ RJ45 Ethernet 10 base-T connector, connection to the motherboard by PC/104.
▪ Control of the Telnet port (port 23) & Web server (port 80).
