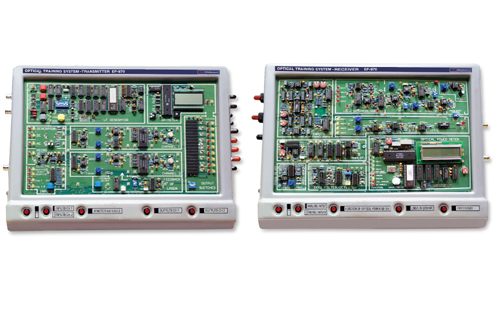

Fiber optics communications – Training modules (ref: ETD038600)
The emitter module of optical communication includes 6 different photoemitting stations, 2 lines can be simultaneously activated for the applications PWM.
The receiver consists essentially in 2 blocks: 1 for the signal processsing and 1 for the measurements of the optical power.
Technical specifications:
Emitter module:
▪ 6 different photoemitters with cyclic selection, 2 branches can be simultaneously activated for the PWM applications.
▪ Laser emitter with power control.
Receiver module:
▪ The signal within the digital channel follows a series of filtering and amplification processes for subsequent comparison to a reference.
▪ Analog gain: 40 dB.
▪ Digital signal function.
▪ Optical power meter.
▪ Accessories included.
