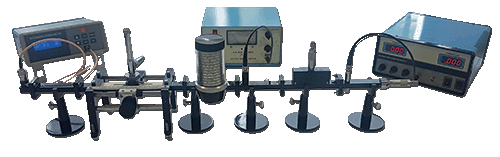

Guided electromagnetic waves study – Training set : PED022000
This set is designed to study guided electromagnetic waves in microwave frequency using “X” band: 8,5 → 11,5 GHz.
It includes:
▪ GUN diode oscillator and its power supply.
▪ PIN diode modulator.
▪ Crystal detector.
▪ Fixed attenuator, variable attenuator.
▪ Transmitter cornet, receiver cornet.
▪ Wave meter.
▪ Accessories.
Characteristics:
Oscillateur Gunn : 8.5 – 11.5 GHz ; 1 mW min
Example of experiments:
► Exp 1: Study of the characteristics of the Gunn diode
► Exp 2: Use of the SWR meter
► Exp 3: Measure of the SWR
…

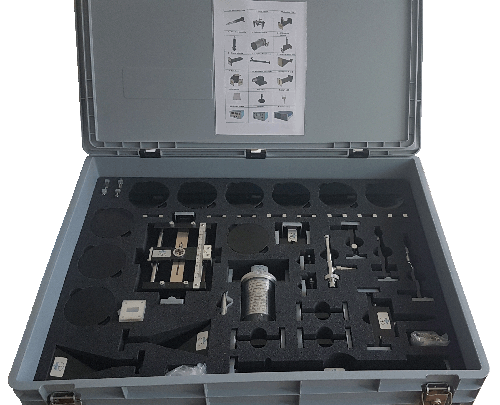

COMPOSITION:

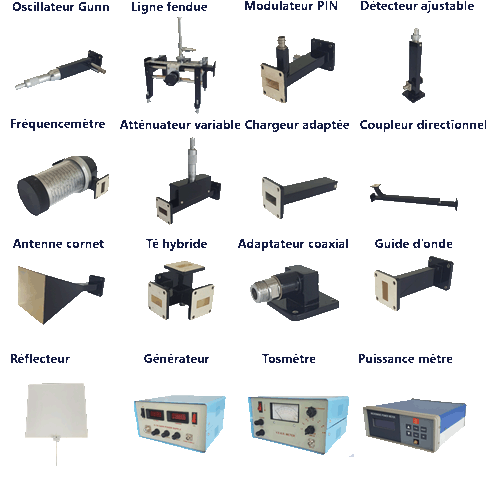

▪ Microwave bench with Gunn oscillator, screw-in adapter, splotted line.
▪ PIN modulator.
▪ Crystal support, variable attenuator; waveguide, adapted load, directional coupler, hybrid “T”, horn antennas.
