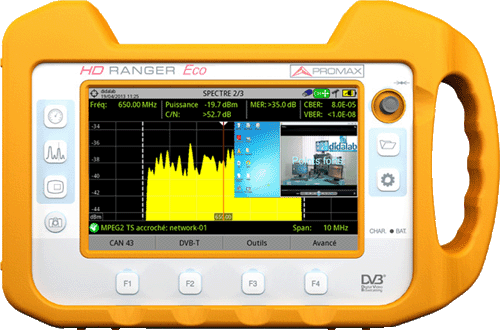

HD Ranger Eco Field-strength meter DVB-T/T2/C/C2/S/S2 (ref: EMD038220)
Powerful field-strength meter, the HD RANGER is the entry-level but very efficient tool for the training of technicians in DTTV antenna (DVB-T) and satellites (DVB-S) installations:
▪ Datalogger.
▪ Multistreams measurement & encoding DVB-S2.
▪ Constellation displaying.
Technical specifications:
DIGITAL FREQUENCY SYNTHESIS:
▪ 5 → 1000 MHz (terrestrial) and 950 → 2150 MHz (satellite)
VIDEO:
▪ Digital modulations: DVB-T2, DVB-S2, DVB-C2, DVB-T, DVB-S, DVB-C.
▪ Video format: MPEG-1, MPEG-2, MPEG-4 AVC H.264.
▪ Colour system: PAL, NTSC, SECAM.
DIGITAL SIGNALS MEASUREMENTS:
▪ DVB-T and T2 (COFDM)
▪ DVB-C (QAM)
▪ DVB-C2 (COFDM)
▪ DVB-S (QPSK)
▪ DVB-S2 (QPSK, 8-PSK, 16-APSK, 32-APSK)
▪ DSS (QPSK)
ANALOG SIGNALS MEASUREMENTS:
▪ Terrestrial band: level, V/A, S/N.
▪ Satellite band: level, S/N.
SPECTRUM ANALYZER
A connection through a PC enables to transfer curves in order to analyze and issue reports.
