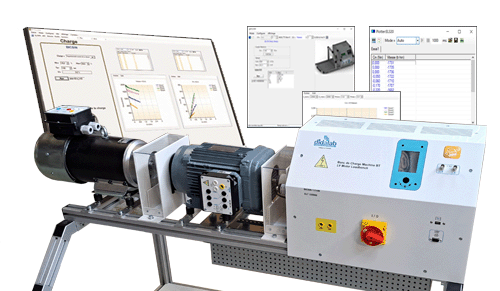

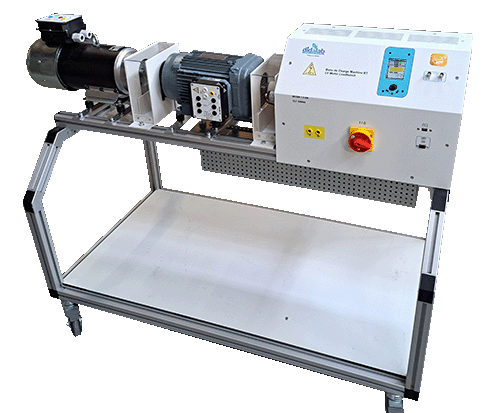

Instrumented Load Bench with load generation and Simulation of Digital Industrial Systems (ELT320000)
Load generation set to carry out the tests of characteristics of DC, AC motors.
– Several types of loads are available, speed function, speed square, constant, inertial,
– Acquisition of characteristic quantities of DC and AC motors (speed, torque, current, voltage),
– Plots of typical curves, torque versus speed, yields…
Technical characteristics :
Composition:
The load is a 2.2 kW brushless motor.
A control panel connectable to a PC generates the load profiles chosen on the brushless motor and ensures the acquisitions, electrical or mechanical (speed, torque, current, voltage, power …).
The machine or machines to be tested are mounted at the end of the sharft.
Its control and acquisition system is easy to use, the sensors are integrated into the system.
Load profiles:
This package makes it possible to create a load profile on the tested motor from 300 W to 1.5 kW:
• Braking torque depending on speed,
• Braking torque depending on the square of the speed,
• Constant torque,
• Torque creating inertia.
• Speed
Acquisition:
Acquisition of mechanical quantities speed, torque, power,
Plotting and analysis of the characteristic curves of the motors (speed/torque)
Assistance in coupling an alternator on the network
Connections:
3-ph power supply: 400 V 50Hz
Measures via diam 4-mm safety sockets,
Connection to the computer via USB
