Light control through CAN network – Training unit (ref: CAN01A)
Training unit of industrial local networks applied to the car industry.
Linked to one EID110 / EID210 target board or a PC computer with a CAN interface board, the CAN module is a complete development project of car signals system control. Programming is carried out either in assembler, C, or C++ language with one real-time kernel available.
Specifications:

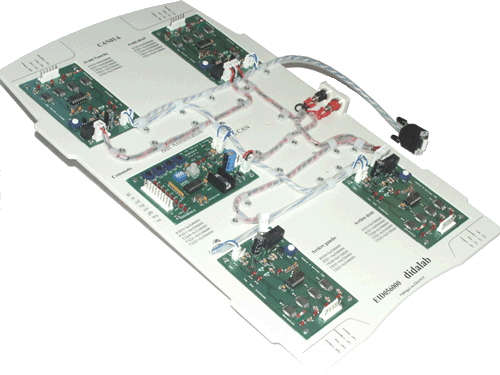

The CAN 01 A unit option is constituted of one PVC stand onto which the inputs/outputs CAN boards and buses are plugged on. It can be controlled by the EID110 or EID210 board or a PC unit.
It includes:
▪ 1 industrial board (ATON SYSTEM) carrying out the CAN interface.
▪ 1 ON/OFF and 8-input acquisition board (microswitches plugged on the board enable the simulation of the light stalks).
▪ 4 ON/OFF and 4-output boards (LEDs located on the output board enable the simulation & also the display of the optical blocks filament state).
→ This unit enables to put the student into real development situation.
→ Progressive & full practical works with solutions are provided with the equipment.
