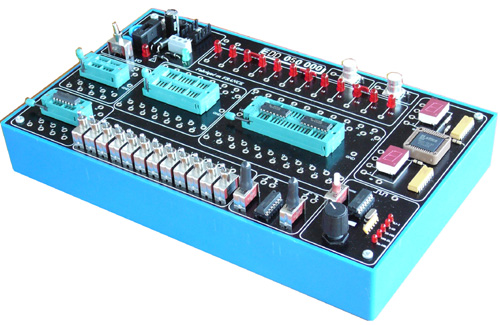

Logic circuits tester & simulator – Training module (ref: EDD050000)
The EDD050000 is designed to enable basic training on logic functions.
It is equipped with 4 Zero Insertion Force (ZIF) sockets. The student plugs the components to be studied into the socket, all connections are achieved by 2-mm patch leads & banana plugs.
Specifications:
Specifications:
▪ 4 Zero Insertion Force (ZIF) sockets with 2-mm connections:
→ 2x 16 pins, 7.62-mm sockets.
→ 1x 28 pins, 7.62/15.24-mm sockets.
→ 1x 40 pins, 7.62/15.24-mm sockets.
Both 7.62/15.24-mm sockets can welcome large and narrow circuits.
Service:
▪ 2x 7-segment display with encoder.
▪ 12 switches for programming 1 or 0 levels.
▪ 2 bounce-free logic push-buttons for practical works with flip-flops, counters and registers.
▪ 1x adjustable clock, 0.1 Hz to 10 kHz (adjustment with push-button and fine adjustement with potentiometer).
▪ 12x LEDs for displaying.
▪ 2x 2-mm / BNC adaptators (to connect measuring instruments).
▪ 1x 5 Vdc power supply, with protection against short-circuits (7 to 12 Vac/dc input).
