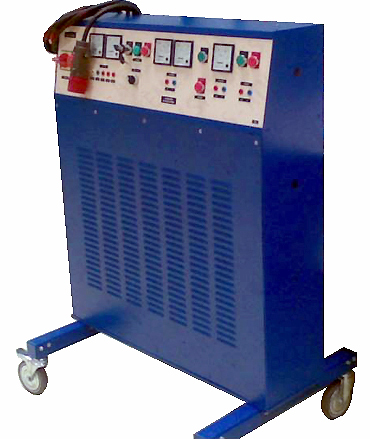

Mobile supply (2 kW) for Electrotechnics – Power supply (ref: ELD090000)

Specifications:

→ 1 Power supply, on 4 castors (2 with brakes).

Characteristics:
▪ Height: 1150 mm.
▪ Width: 895 mm.
▪ Depth: 250 mm.
▪ Power: 2 kW.

Electrical characteristics:
▪ 1 loadbreak switch at the front.
▪ 1 magnetothermic circuit-breaker (30 mA optional) for the main protection.
▪ Push-buttons for the main controls of the bench – start/stop button – with in-service indicator light.
▪ 1 emergency stop, with 455-key (positive security).

AVAILABLE POWER SUPPLIES

▪ 1 fixed power supply: 3-phase 400V+N+E on Ø 4-mm security sockets, protection by the main circuit breaker.

▪ 1 fixed power supply: 230V+N+T on 3 sockets (at the back) protected by 16-A magnetothermic circuit breaker.

▪ 1 adjustable power supply: {0-430 Vac – 5 A} or {0-270 Vdc – 10 A} on Ø 4-mm security sockets with:
→ rectification with PD3 diodes bridge on 3-phase transformer.
→ protection on AC and DC outputs with magnetothermic circuit breaker.
→ start pushbutton with light display, stop pushbutton.
→ compulsory reset of the adjustable autotransformer.
→ voltage and current display with analog instrumentation.

▪ 1 adjustable auxiliary power supply: {0-250 Vac – 2,5 A} or {0-250 Vdc – 2,5 A} on Ø 4-mm security sockets with:
→ rectification from a Graetz bridge on the 1-phase transformer.
→ protection on AC and DC ouputs against short-circuits and surges.
→ start pushbuttons with light display, common stop pushbutton.
→ compulsory reset of the adjustable autotransformer.
→ voltage display with analog instrumentation.
