Modular trainer (pneumatic, electric, electro-pneumatic (ref: ESD100000)
ESD100000
Progressive training in pneumatics, electropneumatics
Study of the componants and their technology
Study of pneumatic and electric basic logic functions
Connections and simulation of pneumatic and electropneumatic settings.
Specifications:

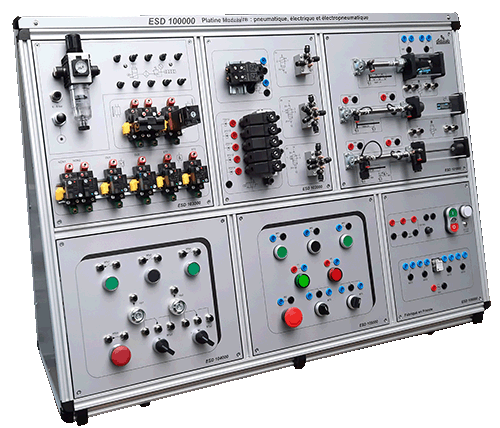

The ESD 100 B is a modular bench, to be put on a table, designed for the progressive training in pneumatic and electropneumatic fields.
It is composed of several plates:
• Pneumatic functions module
• Electropneumatic interface module
• Cylinders module (with electic and pneumatic limit switches)
• Pneumatic HMI module
• Electric HMI module
• Electric power supply module
• We suggest also another standard configuration (ESD100A) ; for any other configuration, please ask us.
