Real-time DSP signal processing, rapid prototyping, graphical compiler – Training module (ref: ETD410000)
ETD410 module to study signal processing and rapid DSP prototyping:
▪ Signal theory, IIR/FIR filters, sampling, quantization.
▪ Digital transmission, information theory and coding.
▪ Identified characteristics of a filter or a servo-system (Bode diagram, Nyquist diagram,…).

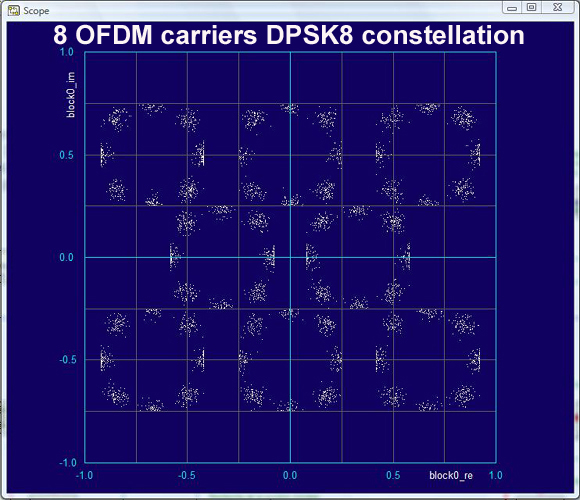

▪ Embedded real-time instrumentation (text terminal, 8-channel oscilloscope (with XY mode, constellation), spectrum analyzer, recorder, sine/triangle/IQ generator…).
▪ Modulations: AM, FM, ASK, PSK, BPSK, DPSK, QPSK QAM,…
Important:
The ETD410 module is specially designed to be used for practical works as well as for class illustration/demonstration (via PC + videoprojector).
Technical specifications:
Hardware:
▪ DSP processor, dual core.
▪ Computational power: 2x 200 MIPS.
▪ 16-bit A/D inputs: 1 MS/s, ON/OFF 3.3 V.
▪ 12-bit D/A inputs: 100 kS/s, ON/OFF 3.3 V.
▪ USB link.
Software:
▪ Graphical compiler-optimized code FibulaG.
▪ > 300 predefined functions.
▪ Possibility to create their own library.
▪ Running under XP Windows environment (or later) – Pro versions.
General topics:

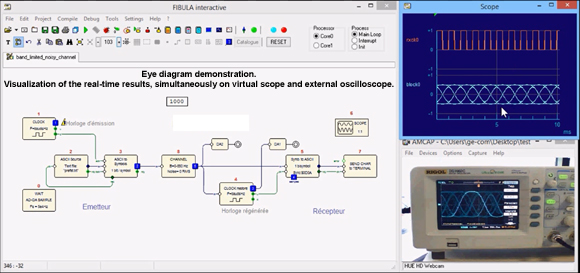

▪ 8-channel virtual oscilloscope, XY mode, constellation, FFT.
▪ Generators: LF, sine, triangle, square, IQ, Gaussian noise.
▪ Signal theory, sampling, quantization, FFT, IIR/FIR filters.

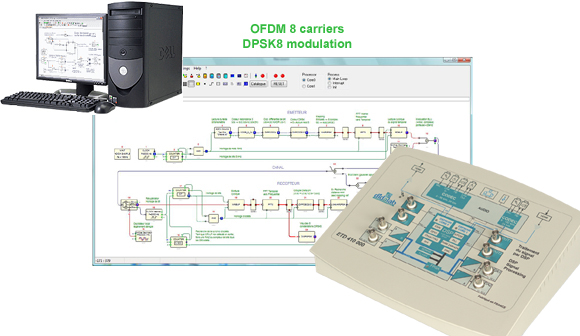

▪ Introduction to baseband digital modulations: ASK, PSK, FSK, QAM, OFDM.
▪ Information & encoding theory, channel, FEC, BER measurement, information flow…
▪ Bode plotting of a filter or a control loop by a frequency swap and signal analysis.
▪ Same for Nyquist analysis.
Important:
The ETD410 module is specially designed to be used for practical works as well as for class illustration/demonstration (via PC + videoprojector).
