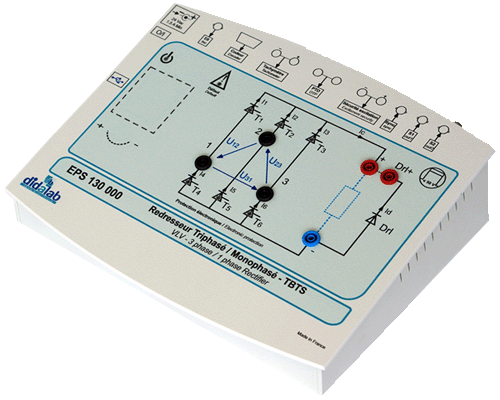

SELV 150/300 W 1-/3-phase rectifier bridge – Training module (ref: EPS130000)
Study of:
1-phase rectifier:
▪ Diodes.
▪ Symmetrical/Asymmetrical mixed.
▪ All types of thyristors.
▪ Assisted inverter.
1-phase rectifier:
▪ Diodes.
▪ Mixed.
▪ All types of thyristors.
▪ Assisted inverter.
Important:
The EPS130 is conceived to operate in SELV configuration (Safety Extra-Low Voltage), whose main asset is to be usable without any resort to expensive electrotechnical installations.
→ Specially adapted for practical works as well as during a lecture to spot a particular phenomenon via a PC + video-projector.
Optional:
▪ D_CCA: speed servo-control (depending on the operative part).
▪ D_Scil: simulation, rapid prototyping, creation of new correctors.
Specifications:
The EPS130000 is compatible with many motors. It is conceived to enable a better understanding of the basics in electrotechnics for the students, from the operating of a half-wave single-phase rectifier to the full-wave three-phase rectifier (all thyristors), the creation of new control correctors as well as speed servo-control (DC motor).
▪ Voltage range: 3x 24 VAC.
▪ Maximum peak current in each static switch: 10 A.
▪ Configurable acceleration ramp.
A driving and acquisition software facilitates the utilisation and understanding of the fundamental principles of the static converters.
Important:
▪ For the laboratories that don’t have any PC on the lab tables, an option (ref: EPS131000) enables to chose and configure the assembly to study.
▪ The EPS120 is also specially adapted for practical works as well as during a lecture to spot a particular phenomenon (via a PC + video-projector).
▪ A direct control by external electronics (+/-10 VDC) is possible for the students to implement power bridges. Important to specify: with this type of control, the safety devices remain active.
Optional:
▪ D_CCA: software to study speed servo-control.
▪ D_Scil: rapid prototyping, creation of new correctors.
