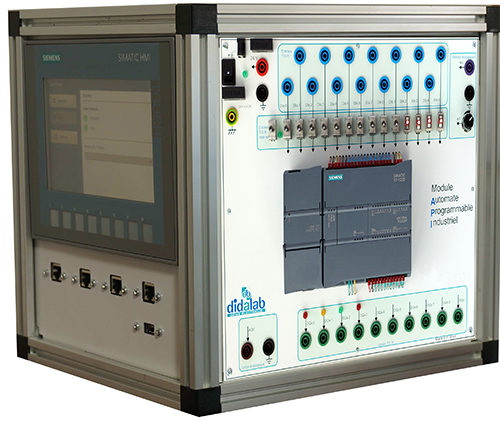

Siemens PLC cube
EST100000
Compact et modular , this cube allows to implement a complete chain of automatic control. The cube consists of an HMI and a Programmable Logic Controller. There are also a side for the power supply and a free side allowing to add a new module (a drive for the control of motor for example (cf Cube-Elec 300 in our Power electronics chapter).
Technical characteristics:
The cube is made of:
• 1 HMI side, KTP 700, 7’’graphic terminal,
• 1 PLC side SIMATIC S7 1200
• 1 white side (free to be able to add a new module (a drive for the control of motor for example (cf Cube-Elec 300 in our Power electronics chapter)).
Topics:
• Profinet connecting
• WinCC programming
• TIA Portal program
• PLC programming
• Setting
