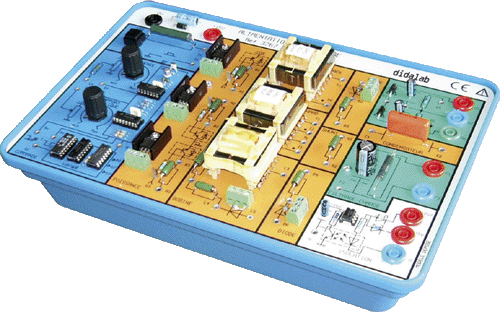

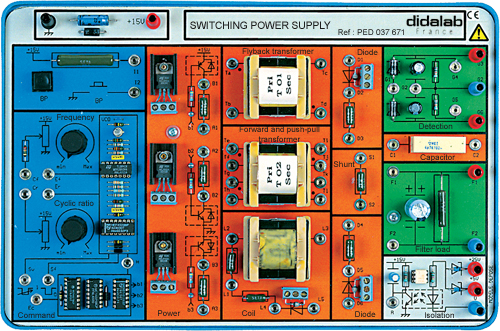

Switched-Mode Power Supplies (SMPS) – Training module (ref: PED037670)
Switch-Mode Power Supplies module, enabling the study of the following functions:
▪ Flyback power supply.
▪ Forward power supply.
▪ Push-Pull power supply.
▪ Inductive & capacitive storage choppers.
Specifications:
▪ Transformers energy conversion (Flyback, Forward & Push-Pull).
▪ Smoothing.
▪ Transistor controlled switching.
▪ RC circuit load.
▪ Pulse generator, adjustable frequency & duration.
▪ “Diode / capacitor” detection (enabling the energy transfer display).
→ External power supply: 6/12 Vdc, 5 A.
