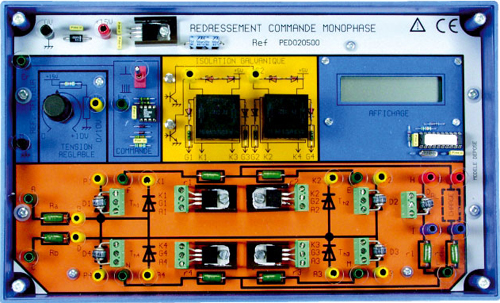

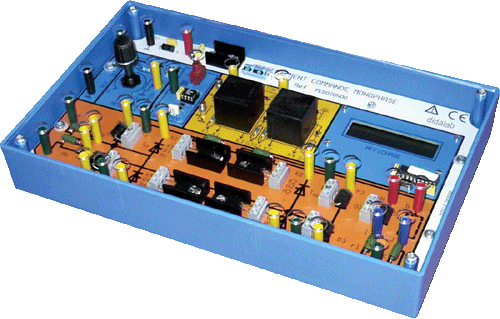

VLV 1-phase thyristorised rectifier – Training module (ref: PED020500)
→ 30 V, 2 Amps, single phase thyristorised rectifier, study of: diode bridge, thyristor bridge, dual bridge, half & full waves.
Parallel resistors located in the branches enable to display the currents.
Specifications:
Not controlled:
▪ Half-wave
▪ Full-wave
Controlled:
▪ Half-wave, all types of thyristors bridge.
▪ Full-wave, all types of thyristors bridge.
▪ Full-wave, thyristors bridge & free-wheel diode.
▪ Full-wave, with dual bridge.
▪ Full-wave, dual bridge & free-wheel diode.
