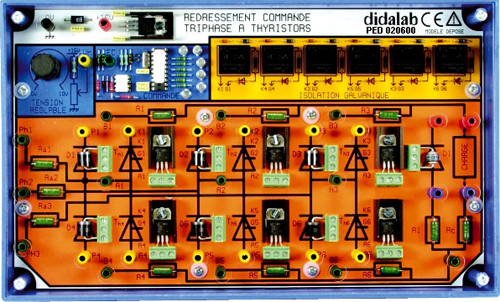

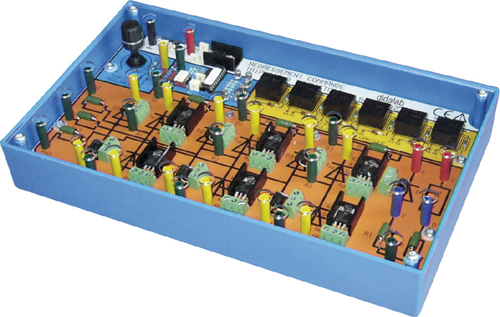

VLV 3-phase thyristorised rectifier / assisted inverter – Training board (ref: PED020600)
3-phase thyristorised rectifier module, assisted inverter, free-wheel diode.
Parallel resistors are located in the branches in order to display the current on the oscilloscope.
Specifications:
Not controlled:
▪ Half-wave, three-phase (P3)
▪ Full-wave, three-phase (PD3)
Controlled:
▪ Half-wave, three-phase all thyristors bridge
▪ Full-wave, three-phase all thyristors bridge, with or without free-wheel diode
▪ Three-phase dual bridge, with/without free-wheel diode
▪ Assisted inverter.
