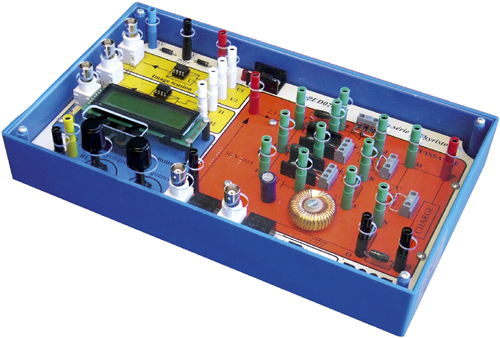

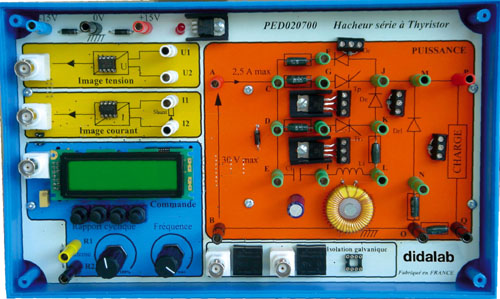

VLV step-down thyristorised chopper – Training module (ref: PED020700)
→ 30 V, 2 Amps, subvoltage thyristorised chopper module.
Parallel resistors are located in the branches in order to display the current on the oscilloscope.
One microcontroller enables the user interface & the parameters adjustments (frequency, duty cycle, operations in manual or automatic mode).
Specifications:
Extinction circuit thyristorised serial chopper device:
▪ Built-in differential voltage measurement probe
▪ Built-in current measurement probe
Topics:
▪ Selection of the manual or automatic control
▪ Adjustable duty cycle: 1 % → 99 %
▪ Variable frequency
▪ Operation with resistive load
▪ Operation with motor
