| PARCOURIR : ACCUEIL > Electrical Engineering > Electrotechnics > Range 4: 1.5 kW range |
|

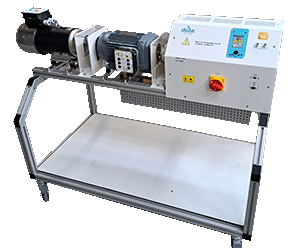

Complete 1.5-kW AC/DC Motor benchELD150 1.5-kW Test group: DC and 3-phase asynchronous motors, load generator, with data acquisition |
|
Instrumented Load Bench with load generation and Simulation of Digital Industrial Systems (ELT320000)Load generation set to carry out the tests of characteristics of DC, AC motors. - Several types of loads are available, speed function, speed square, constant, inertial, - Acquisition of characteristic quantities of DC and AC motors (speed, torque, current, voltage), - Plots of typical curves, torque versus speed, yields... |
|
Active load, electrotechnical measurement & load generation unit for DC & AC motors (1.5 kW) - Training bench (ref: ELD151000)Load generation unit to carry out experiments & characteristics statements on DC & AC motors. ▪ Several loads are available: function of the speed, square of the speed, constant, inertial... ▪ Acquisition of the characteristic values of DC & AC motors (speed, torque, current, voltage). ▪ Plotting of typical curves: torque, function of the speed, efficiency... |
|
AC motor 3-phase LSFMV90 (1.5 kW) - Motor (ref: ELD152000)Training version of industrial AC 3-phase cage motor → average power: 1.5 kW |
|
DC motor parted excitation MS100 (1 kW) - Motor (ref: ELD153000)Training version of industrial DC motor, parted excitation, armature voltage: 200V, permanent current: 9,2 A. |
|

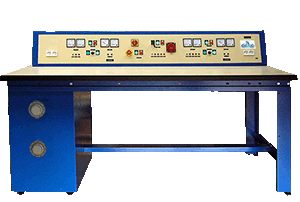

Test workbench for Electrotechnics - Power supply (ref: ELD100000)Electrotechnics complete workbench, with built-in power supplies. AC 3-phase or DC outputs, average power: 2 kW. |
|

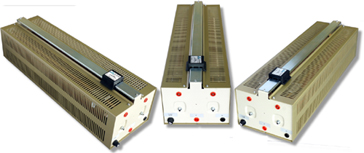

Rheostat (220 Ohms, 3 A) - Load (ref: ELD101000)Loading rheostat → 220 Ohms, 3 A, fuse-protection of the cursor. |
|
Self (1-/3-phase) - Load (ref: ELD102000)Inductive load → 35 mH 5 A. |
|
Mobile supply (2 kW) for Electrotechnics - Power supply (ref: ELD090000)2-kW power supply for tests in Electrotechnics. |
| | |
|
