| PARCOURIR : ACCUEIL > Electrical Engineering > Electrotechnics > Range 3: LV 300 W range |
|
Presentation of the LV 300-W rangeBooklet showing our products for electrical machines and power electronics in the LV 300-W power range. |
|

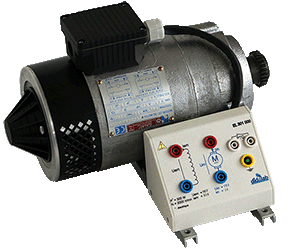

300-W / 170 Vdc motor with separate excitation, ref EL301000DC motor, Low Voltage, with separate excitation -> Power: 300 W -> Nominal voltage: 170 Vdc -> Nominal current: 2 A, |
|
300-W / 170 Vdc motor with permanent excitation, ref EL302000DC motor, Low Voltage, with permanent excitation -> Power: 300 W -> Nominal voltage: 170 Vdc -> Nominal current: 2 A, |
|
300-W, squirrel cage asynchronous motor, LV, ref EL303000LV 3-phase asynchronous motor, squirrel cage, star or delta -> Nominal power: 370 W -> Nominal voltages: 240/400V -> Nominal currents: 2.1A / 1.2 A, |
|
300-W Brushless motor, LV, ref EL306000Low voltage Brushless motor 300 W |
|
BICMAC-300 Instrumented load bench for AC or DC machines - Motor/Load benchEL310000 The load bench BICMAC- 300 is specially designed for: ▪ Electrotechnics. ▪ Power electronics. ▪ Automatic control. It works, in accordance with the standard LV (170 Vdc / 240 Vac) |
|
BICSIN-300 Instrumented load bench for AC or DC machines - Motor/Load benchEL320000 The load bench BICSIN- 300 is specially designed for: ▪ Electrotechnics. ▪ Power electronics. ▪ Automatic control. It works, in accordance with the standard LV (170 Vdc / 240 Vac) |
|
Resistive load, 320 VA 210 OhmELD050000 320 VA Resistive load, with protecting fuse |
|
300-W Power supply, 3-phase AC, DC, Low VoltageEM300000 LV power supply specially designed to carry out practical works on any power electronics bridge (1-/3-phase rectifiers, choppers, 1-/3-phase inverter). Its output voltage comply with Low Voltage standard (3x220 Vac ; 340 Vdc) It is plugged on mains (1-phv 220 V, 50 Hz). |
|
Cube-Elec 300: Pedagogical industrial motor drive, for Brushless motorEST110000 Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control. The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Brushless motor |
|
Cube-Elec 300: Pedagogical industrial motor drive, for Asynchronous motorEST120000 Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control. The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Asychronous motor |
|
Table for technical laboratories, ref EMO100000Suitable for all your "low voltage" electrical engineering and telecommunications laboratories Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket) |
|
Capacitive Load (ref: EPD037360)Capacitive load This module is particularly adapted to experiments in Power electronics (300 W). |
| | |
|
