Electropneumatic robot (Grafcet control) - Training bench (ref: ESD030000) 1/4

Electropneumatic robot (Grafcet control) - Training bench (ref: ESD030000)



Electropneumatic cell buffering parts.
This cell can be controlled by:
▪ Schneider® PLC via DB25 & DB37 special bus.
▪ API through any brand screw terminal.
▪ PC via USB connection & Grafcet edition software.



Quantité : caddie Ajouter au devis voir Descriptif détaillé

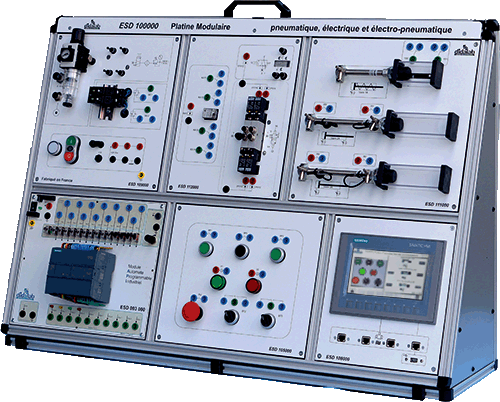

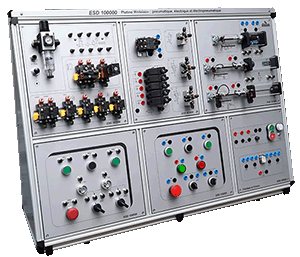

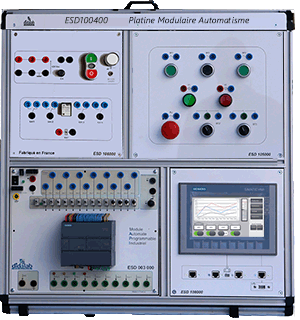

Tri-trainer (pneumatic, electric, electro-pneumatic) - Training bench (ref: ESD100000) 1/4

Tri-trainer (pneumatic, electric, electro-pneumatic) - Training bench (ref: ESD100000)



Progressive training in automation.
▪ Study of the components and their technology.
▪ Study of pneumatic logic and electrical basic functions.
▪ Wiring and simulation of pneumatic, electric & electro-pneumatic patterns.

Quantité : caddie Ajouter au devis voir Descriptif détaillé


Traffic light system (PLC control) - Training module (ref: ESD200000) 1/4

Traffic light system (PLC control) - Training module (ref: ESD200000)



ESD200000 is an operating part for introducing students into PLC control.
It can be used with a lot of PLCs (Schneider® Twido or M340, Siemens® S71200, Omron® CP1E, etc...).
A manual is provided: it includes very progressive practical works (from orange lights flashing to full lights operations with pedestrian calls and car presence detection on secondary roads and turn left on main roads).
The connections are made by safety 4-mm leads.

Quantité : caddie Ajouter au devis voir Descriptif détaillé


3-level hoist (21 ON/OFF Inputs/Outputs) - Training bench (ref: ESD250000) 1/4

3-level hoist (21 ON/OFF Inputs/Outputs) - Training bench (ref: ESD250000)



3-level hoist model, 21 ON/OFF inputs/outputs, Grafcet sequential control.
Compatible with any Programmable Logic Controller (PLC) having inputs/outputs from 5 to 24 Vdc, common point to + or -.
Manageable by PC (Grafcet).

Inputs (PLC or PC outputs) display of calls, up & down car control, details:
▪ 13 Outputs (PLC or PC inputs): car presence sensors on level, floor & car calls, emergency stop.
▪ 8 Inputs (PLC or PC outputs): calls display, up & down car control.

Provided with the Grafcet editor & interpreter "Mentorgraf":
▪ Grafcet graphic edition, steps, transitions, AND/OR divergence, macro steps, front conditional actions, internal variables, time delays, master Grafcets, slave Grafcets.
▪ Syntax errors processing & used variables coherence.
▪ Operation in simulation mode.
▪ Operation in run mode with variable display.

Quantité : caddie Ajouter au devis voir Descriptif détaillé

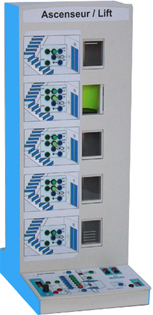

5-level elevator (50 ON/OFF Inputs/Outputs, CANopen control) - Training bench (ref: ESD350000) 1/4

5-level elevator (50 ON/OFF Inputs/Outputs, CANopen control) - Training bench (ref: ESD350000)



Designed for the study of the sequential automatic process control with safety control by:
▪ interpreter, Grafcet simulator on PC (steps, conditional actions, macro-steps, divergence, convergence...).
▪ PLC through 4-mm Inputs/Outputs sockets.
▪ PLC or any other control device, through CANopen cell.

It enables the control of large ability elevator models:
▪ Up motion priority.
▪ Down motion priority.
▪ Car pre-positioning for the waiting time schedule (morning, noon, evening).
▪ Control of several elevator columns.

Quantité : caddie Ajouter au devis voir Descriptif détaillé

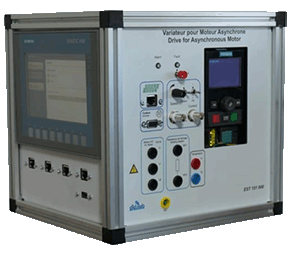

Cube-Elec 300: Pedagogical industrial motor drive, for Asynchronous motor 1/4

Cube-Elec 300: Pedagogical industrial motor drive, for Asynchronous motor


EST110000
Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control.
The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Asychronous motor

Quantité : caddie Ajouter au devis voir Descriptif détaillé

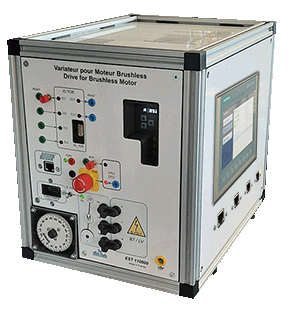

Cube-Elec 300: Pedagogical industrial motor drive, for Brushless motor 1/4

Cube-Elec 300: Pedagogical industrial motor drive, for Brushless motor


EST120000
Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control.
The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Brushless motor

Quantité : caddie Ajouter au devis voir Descriptif détaillé
