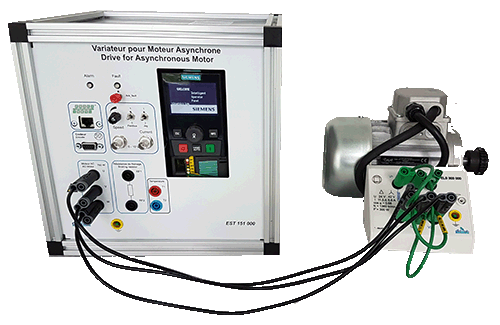

Cube-Elec 300: Pedagogical industrial motor drive, for Asynchronous motor
EST120000

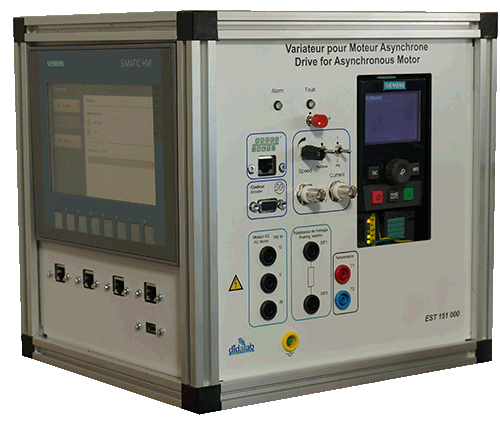

Cube-Elec 300 is compact and modular, it allows to implement a complete chain of automatic control.
The cube consists of an HMI, a Programmable Logic Controller and a drive for the control of an Asychronous motor
Technical characteristics:
Cube-Elec is made of:
• 1 HMI side, KTP 700, 7’’graphic terminal,
• 1 Drive (motor variator) side SIMATICS G120C, 0.55 kW, with graphic terminal included, without filter, for asynchronous 3-phase motor
• 1 PLC side SIMATIC S7 1200
This products also exists with a V90 drive, for Brushless motor, ref EST110000.
We can also now offer cubes for the following ranges:
– SELV 100 W and 300 W (for DC and/or Brushless motors)
– LV 300 W and 1500 W (for Brushless and AC 3-ph motors);
Please ask us for any configuration (export@didalab.fr)
Topics:
• Profinet connecting
• WinCC programming
• TIA Portal program
• PLC programming
• Setting
