VLV 3-Phase supply – Power supply (ref: EMD030390)

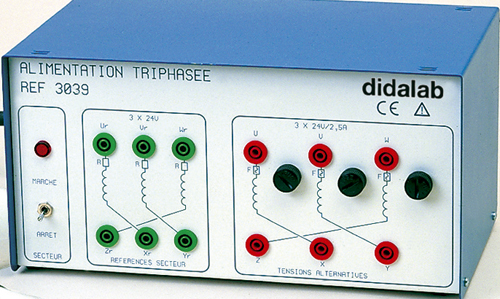

Very low voltage three-phase power supply: 3x 24 VAC 2.5 Amps, specially adapted for the 3-phase rectifier study module, assisted inverter (ref: PED020600).
Specifications:
▪ Three-phase power supply: 3 channels 24 V 2,5 Amps, with possible Y/Δ connections.
▪ Reference outputs: 3 channels 24 V, 0.2 Amps for the synchronization of the power bridges.
▪ Protection: fuses on the power channels, resistors on the synchronization channels.
▪ Mains supply through standard {3 + 1} pins plug.
