PARCOURIR : ACCUEIL > PHYSICS > OPTICS > OPTICS PRODUCTS > OPTICAL SENSORS Où Acheter ?

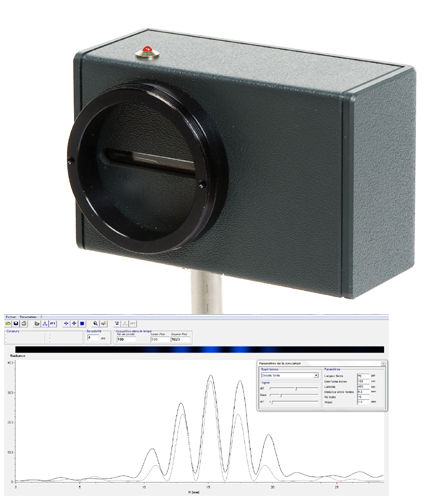

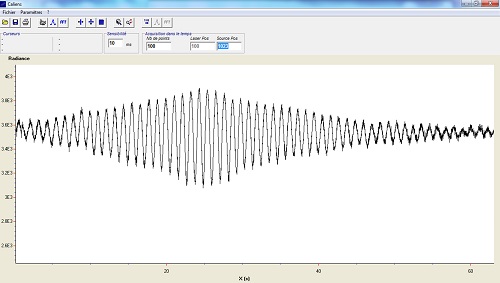

CCD Caliens camera : POD010020 Quantité : 1 2 3 4 5 Ajouter au devis Référence : POD 010 020 Principe : the CCD camera is constituted of one optical head directly interfaced with a PC computer through USB port. Once adjusted, it is possible to sample and operate luminous pictures with the help of complete & easy-to-use software program. Characteristics: the sensor is composed of 2048 pixels, 14 µm width (that is to say an usable area of about 30 mm). Integration time adjustable from 5 ms to 100 ms. Complete program, Windows compatible. Provided with “ready-to-use” cables. The optical head, fitted out with stainless steel rod, Ø10 mm, can be adapted to optical bench. Spectrometry by Fourier’s transforms with Michelson interferometer: When carrying out the FFT of an oscillogram, the resulting spectrum is often noise-spoilt. To reduce these diverse disturbance effects, it is sufficient to add in the Michelson’s apparatus, one laser source (with separator), which is used as a reference. In taking the FFT option, the camera can record simultaneously two signals (laser + source) & the program will be provided with one time base correction algorythm. Main Experiments: • Slot or hole diffraction • Young’s slots • Mirrors or Fresnel bi-prism • Interferences with N slots • Gauss beams • Sodium doublets • Source coherence Basic composition: • CCD camera • Complete software • Attenuator filters (2 polarizing filters, 2 filters with a density of 0.9, 1 filter with a density of 3) • USB Cable • Transportation case

Télécharger la documentation complète (Haute définition).

Quantité : 1 2 3 4 5 Ajouter au devis
