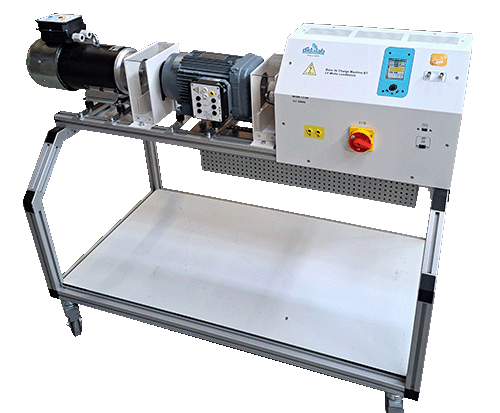

Instrumented Load Bench with load generation and Simulation of Digital Industrial Systems (ELT320000)

Quantité : caddie Ajouter au devis


Référence : ELT 320 000



Instrumented Load Bench with load generation and Simulation of Digital Industrial Systems (ELT320000) 2/4

Technical characteristics :



Composition:


The load is a 2.2 kW brushless motor.

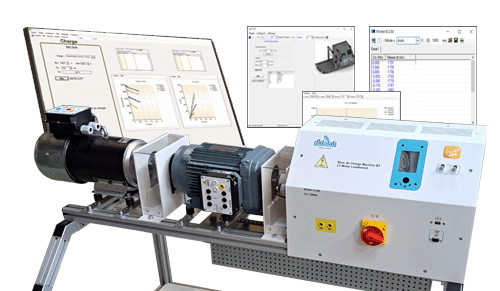

A control panel connectable to a PC generates the load profiles chosen on the brushless motor and ensures the acquisitions, electrical or mechanical (speed, torque, current, voltage, power ...).
The machine or machines to be tested are mounted at the end of the sharft.
Its control and acquisition system is easy to use, the sensors are integrated into the system.


Load profiles:


This package makes it possible to create a load profile on the tested motor from 300 W to 1.5 kW:
• Braking torque depending on speed,
• Braking torque depending on the square of the speed,
• Constant torque,
• Torque creating inertia.
• Speed


Acquisition:


Acquisition of mechanical quantities speed, torque, power,
Plotting and analysis of the characteristic curves of the motors (speed/torque)
Assistance in coupling an alternator on the network


Connections:


3-ph power supply: 400 V 50Hz
Measures via diam 4-mm safety sockets,
Connection to the computer via USB

fichier Télécharger la documentation complète (Haute définition).
