PARCOURIR : ACCUEIL > Electrical Engineering > Telecommunications > TTV Où Acheter ?

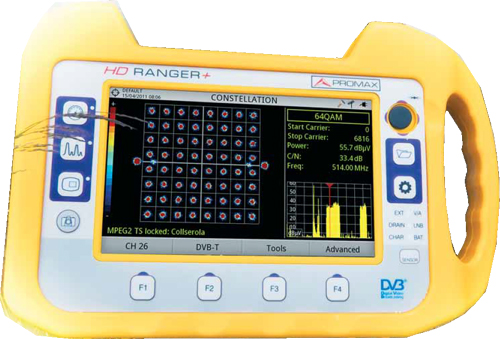

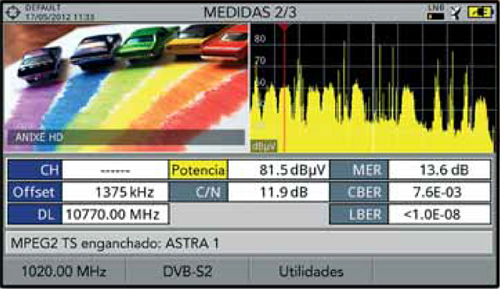

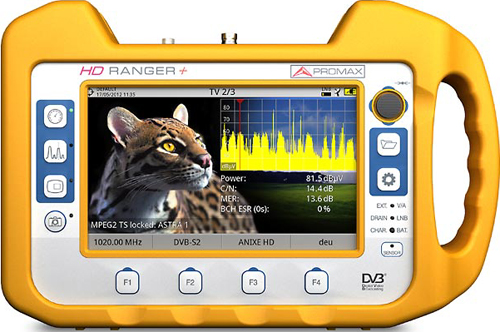

HD Ranger+ Field-strength meter DTTV DVB-T/T2, satellite, fiber optics & leads (ref: EMD038230) Quantité : 1 2 3 4 5 Ajouter au devis Référence : EMD 038 230 Technical specifications: DIGITAL FREQUENCY SYNTHESIS: ▪ 5 → 1000 MHz (terrestrial) and 950 → 2150 MHz (satellite) VIDEO : ▪ Digital modulations: DVB-T2, DVB-S2, DVB-C2, DVB-T, DVB-S, DVB-C. ▪ Video format: MPEG-2 (MP@HL). MPEG-4 AVC H.264. ▪ Colour system: PAL, NTSC, SECAM. ▪ TV standard: M, N, B, G, I, D, K and L. DIGITAL SIGNALS MEASUREMENTS: ▪ DVB-T2 (COFDM) ▪ DVB-S2 (QPSK/8PSK) ▪ DVB-C2 (COFDM) ▪ DVB-T (COFDM) ▪ DVB-S (QPSK) ▪ DVB-C (QAM) ANALOG SIGNALS MEASUREMENTS: ▪ Terrestrial band: level, V/A, S/N. ▪ Satellite band: level, S/N. SPECTRUM ANALYZER ADVANCED TOOLS AND FUNCTIONS: ▪ Constellation diagram for DVB-T2/S2/C2 and DVB-T/S/C ▪ Echo analyzer mode for DVB-T2/C2 and DVB-T ▪ Datalogger (automatic captures and savings of the measurements) (1) ▪ LTE ingress for DVB-T2 et DVB-T ▪ Test function F.I. SAT (response for FI distribution networks in satellite band) (2) ▪ Attenuation test function (response for signals distribution networks in terrestrial band) (3) ▪ Command generator DiSEqC 1.2 (4). External units powering: 5/12/13/15/18/24V + 22-kHz signal. ▪ Selection of the PLS code ▪ ISI filtering 2nd generation DVB standard (DVB-T2, DVB-C2, DVB-S2) ▪ Key for screenshots ▪ USB interface: read/write on a pendrive, virtual serial port, CDC “Communications Device Class” A connection through a PC enables to transfer curves in order to analyze and issue reports. OPTIONAL: ► Optical/RF transposition This option add 2 functionnalities to the meter: selective Optical Power Metering (OPM), and Optical/RF converter. Optical networks certification combined with a light source. Optical-to-RF conversion for CATV or DTTV optical links up to 1 GHz.

Produits associés ou complémentaires ... DVB-T/T2 digital modulator - Device (ref: ETV120000 or MO-481)

Télécharger la documentation complète (Haute définition).

Quantité : 1 2 3 4 5 Ajouter au devis
