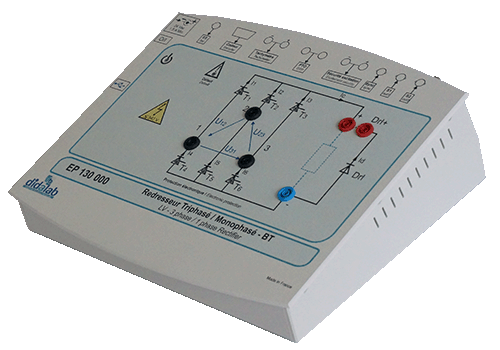

1-phase, 3-phase rectifier, 300 W (Ref : EP130000)

Référence : EP 130 000

1-phase, 3-phase rectifier, 300 W (Ref : EP130000) 2/4

Technical characteristics :

EP130000 can be used with a lot of motors.
It has been conceived to help the students' understanding in electrotechnics and power electonics.

Study of :

1-phase rectifier (all diodes, all thyristors, mixed symmetrical, mixed asymmetrical, assisted inverter)

3-phase rectifier (all diodes, all thyristors, mixed, assisted inverter)

Allowable voltage: 3 x 240 VAC.

-> Pick current in each static switch: 2 A
-> Adjustable run-up slope

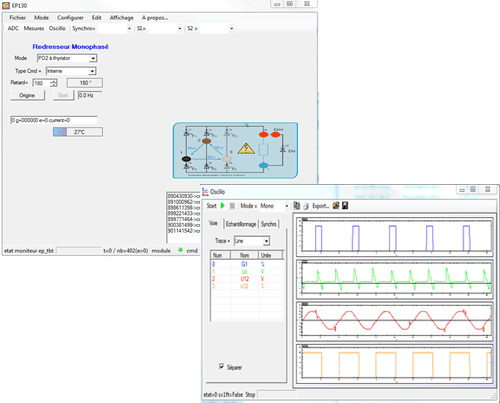

The control and acquisiton program helps the use and understanding of the mains principles of static converters.

Optional extras:
D_CCA, program for the study of speed control,
D_Scil, program for prototyping and new correcters design.

Télécharger la documentation complète (Haute définition).

1-phase, 3-phase rectifier, 300 W (Ref : EP130000) 3/4
