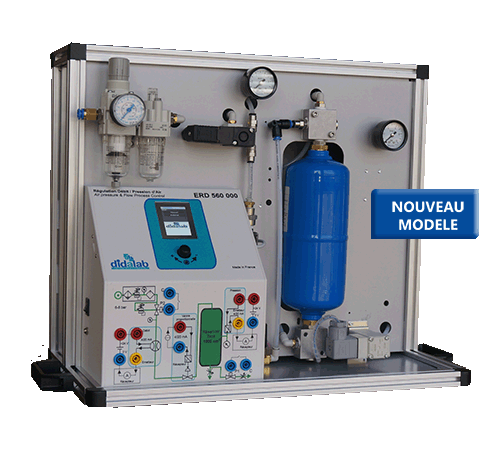

Air pressure Process Control (ref ERD560000)

Référence : ERD 560 000

Air pressure Process Control (ref ERD560000) 2/4

It is composed of :
A actuator part for air Pressure process control (time constant : about 14s), with a experiment chamber of 1000 cm³,
The control pannel is included.
It displays a didactic mimic-layout, with all necessary connections for linking sensors and actuators, and built-in power supply.
Compatible with all controllers providing 4/20 mA inputs/outputs

With its specific software, the unit enables the study of P, I, D, correctors, Z transform, fuzzy logic, dead time compensation, development of new correctors

Study of the current loop,

Test in Open Loop of a pressure control,

Pressure control with corrector : P, P I, PID, Z transform,

Simulation of a process.

Télécharger la documentation complète (Haute définition).
