Speed servo-control - Training module (ref: ERD037860) 1/4

Speed servo-control - Training module (ref: ERD037860)



Speed servo-control study of a DC motor/load unit, by P/PI electronic correctors.

Quantité : caddie Ajouter au devis voir Descriptif détaillé


Position servo-control - Training monitor (ref: ERD037870) 1/4

Position servo-control - Training monitor (ref: ERD037870)



Study of inertia disk position servocontrol with P, PD electronic correctors.

Quantité : caddie Ajouter au devis voir Descriptif détaillé

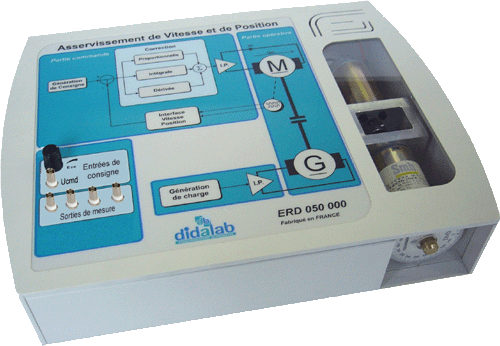

Study of speed/position servo-systems - Training module (ref: ERD050000) 1/4

Study of speed/position servo-systems - Training module (ref: ERD050000)


Digital & analog servo-control:
▪ Selection of the structure: open loop, closed loop in speed & position.
▪ Selection of the excitation type: constant step, ramp, trapezoid, sine, internal (or external) Setpoint following (potentiometer).
▪ Selection of the power interface supplying the motor: voltage or current control.
▪ Selection of the corrector: P/PD/PI/PID ; ON/OFF ; Digital (sampled with "Z" correction function(optional)).
▪ Selection of the input onto which the derivative action is applied: gap, measurement.
▪ Selection of the profile of the driven mechanical load: constant (weighty load), function of the speed (viscuous/fluid friction), intrinsic dry friction, compensated or not.

Quantité : caddie Ajouter au devis voir Descriptif détaillé


In-depth study of speed/position servo-systems - Training module (ref: ERD100000) 1/4

In-depth study of speed/position servo-systems - Training module (ref: ERD100000)



Study of DC motor speed & position servo-control by analog & digital correctors, carrying out of new correctors with tacho-generator feeedback.


Quantité : caddie Ajouter au devis voir Descriptif détaillé


Speed/Position servo-control (linear/non-linear) - Digital axis (ref: ERD150000) 1/4

Speed/Position servo-control (linear/non-linear) - Digital axis (ref: ERD150000)



Servo-control of a rack-and-pinion industrial digital axis & DC motor, with linear or non-linear corrector.

Quantité : caddie Ajouter au devis voir Descriptif détaillé

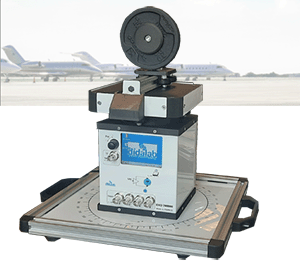

didaRadar, Speed and Position servo-system 1/4

didaRadar, Speed and Position servo-system


ERD200000
didaRadar, Speed and Position servo-system based on an Approach Radar.
Possibility to experiment in open loop, closed loop controlled in speed, closed loop controlled in position.
Choice of correctors: P/PI/PID, 3rd order digital « Z » transform, ON/OFF, state feedback.

Quantité : caddie Ajouter au devis voir Descriptif détaillé


Table for technical laboratories, ref EMO100000 1/4

Table for technical laboratories, ref EMO100000


Suitable for all your "low voltage" electrical engineering and telecommunications laboratories
Suitable for your laboratories in 300-W Power Electronics and Motors studies equipped with our EM(S)300B power supplies (providing adjustable 3-phase and DC from a 220 V/16A socket)

Quantité : caddie Ajouter au devis voir Descriptif détaillé
