Logic circuits tester & simulator - Training module (ref: EDD050000) 1/4

Logic circuits tester & simulator - Training module (ref: EDD050000)



The EDD050000 is designed to enable basic training on logic functions.
It is equipped with 4 Zero Insertion Force (ZIF) sockets. The student plugs the components to be studied into the socket, all connections are achieved by 2-mm patch leads & banana plugs.

Quantité : caddie Ajouter au devis voir Descriptif détaillé

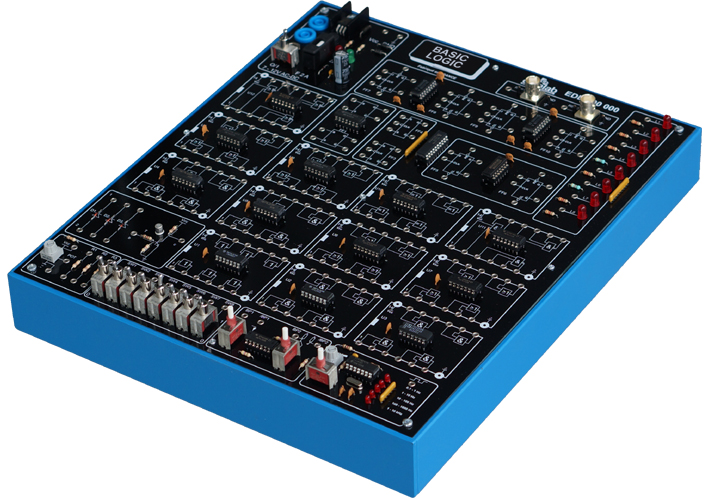

Basic logic - Training module (ref: EDD100000) 1/4

Basic logic - Training module (ref: EDD100000)



The EDD 100 000 logic training board enables the study of basic combinatorial or sequential logic (AND, OR, NOT, XOR, RS & JK flip-flops,...).
Different technologies are available from discrete components: RD (Resistors, Diodes), DTL (Diode-Transistor Logic) & TTL (Transistor-Transistor Logic) integrated circuits.
Mimic layouts displayed are similar to the industrial datasheet diagrams.

Quantité : caddie Ajouter au devis voir Descriptif détaillé


Digital logic - Training module (ref: EDD120000) 1/4

Digital logic - Training module (ref: EDD120000)



The EDD120000 digital logic simulator module is an extension module of the EDD100000 combinatory logic simulator.
It enables the study of combinatory circuits (amplifiers, open collectors & 3-state logic) and digital functions (comparators, shift registers, up/down counter, ALU).
Complete practical works (questions & solutions) are provided with the equipment.

Quantité : caddie Ajouter au devis voir Descriptif détaillé


Programmable logic - Training module (ref: EDD200000) 1/4

Programmable logic - Training module (ref: EDD200000)



The EDD200000 board is delivered with accessories, enabling the study of EPLD programmable logic, as well as the operations & skills for VHDL language (developed by Lattice Semiconductor®). For an easier maintenance, all components are plugged on sockets.

Quantité : caddie Ajouter au devis voir Descriptif détaillé
