Programmable logic - Training module (ref: EDD200000)

Référence : EDD 200 000

Marque : Didalab / Lattice Semiconductor®

Programmable logic - Training module (ref: EDD200000) 2/4

Specifications :

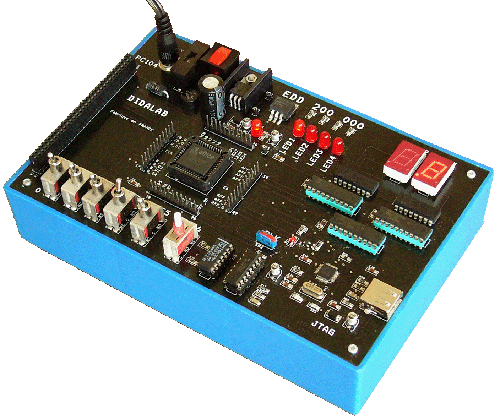

The EDD 200 board is based on one EPLD MACH4 circuit, with 44 pins, manufactured by Lattice Semiconductor®. It is provided with one VHDL edition & downloading program.
It includes:
▪ 5 switches to program 0 or 1 levels (4 counter inputs, 1 programming input).
▪ 1 push-button based on bounce-free ogic (JK clock, counter).
▪ 4 LEDs.
▪ 2 multiplexed 7-segment display devices.
▪ 1 PC/104 standard connector enabling the study of this interface on the EID serial board or on any other available board.
▪ 1 Centronics connector, 360 pins, JTAG standard.
▪ 1 switchable clock: 2 Hz, 2 kHz.
Test points are located around the component, in order to facilitate the reading of inputs/outputs on the oscilloscope.
