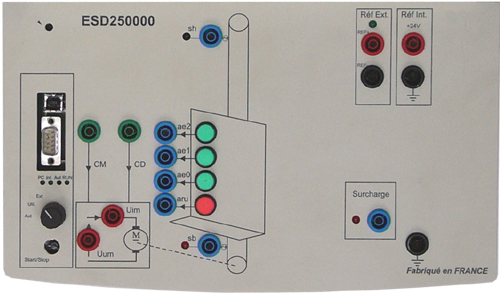

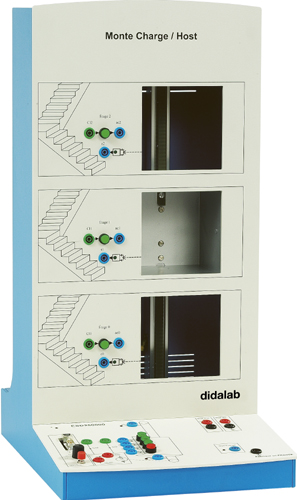

3-level hoist (21 ON/OFF Inputs/Outputs) - Training bench (ref: ESD250000)

Quantité : caddie Ajouter au devis


Référence : ESD 250 000



3-level hoist (21 ON/OFF Inputs/Outputs) - Training bench (ref: ESD250000) 2/4

Specifications:
▪ 3-level hoist model, 21 ON/OFF inputs/outputs.
▪ compatible with any Programmable Logic Controller (PLC) having inputs/outputs from 5 to 24 Vdc.
▪ common point at + or -.

Inputs (controller outputs):
▪ 3 car calls display.
▪ 1 up control.
▪ 1 down control .
▪ 3 floor calls display.

Outputs (controller outputs):
▪ 3 car calls (located on the vertical front panel).
▪ 3 car calls (inside the car, located on the control panel).
▪ 3 detectors with car presence display.
▪ 1 emergency stop with display.
▪ 1 car overweight detection.
▪ car driving motor voltage & current images.

→ 230V/50Hz built-in power supply.

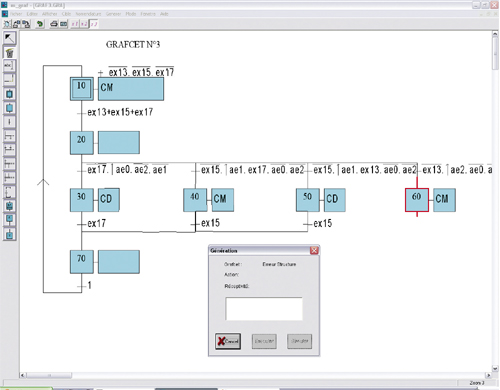

Grafcet editor, provided in basic version, characteristics:
► Editor: enables to draw the Grafcet with the basic tools: step, transition, AND/OR divergence/convergence, macro steps...
► Generator: converts the Grafcet into executable code, checking the syntax & coherence between target & used variables...
► Simulator: executes the Grafcet in simulation, one "click" on the input variable enables the activation of the corresponding transition, the whole graph can be tested before controlling the operating part.
► Interpreter: enables the execution & control following the step-by-step, path or quick mode.
Some characteristics: 256 steps, 256 transitions, 256 * 8-bit memories, macro steps, possibility of several independent Grafcets operating simultaneously.

fichier Télécharger la documentation complète (Haute définition).
fichier Télécharger la documentation complète (Basse définition).

3-level hoist (21 ON/OFF Inputs/Outputs) - Training bench (ref: ESD250000) 3/4

3-level hoist (21 ON/OFF Inputs/Outputs) - Training bench (ref: ESD250000) 4/4
