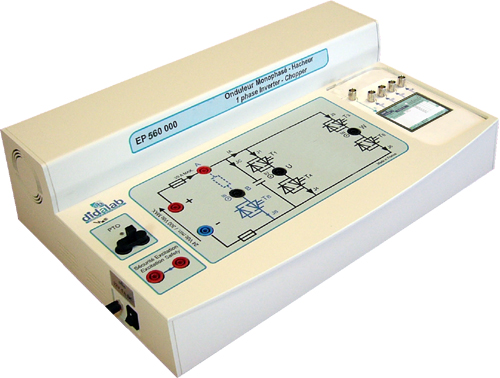

1.5/3 kW 1-/2-/4-quadrant chopper / 1-phase inverter - Training module (ref: EP560000)

Quantité : caddie Ajouter au devis


Référence : EP 560 000



1.5/3 kW 1-/2-/4-quadrant chopper / 1-phase inverter - Training module (ref: EP560000) 2/4

Specifications:



Each branch is equipped with one insulated probe with BNC output.

Chopper:
▪ Serial
▪ Voltage reversible
▪ Current reversible
▪ Four quadrants
▪ Serial, dual mixed ( 0 +E 0 / 0 –E 0 )

Inverters:
Single-phase
▪ Full-wave, shifted control, fixed frequency.
▪ Full-wave, shifted control, variable frequency.
▪ PWM +/-E, +/0/-E.

Closed loop control (linked with the EP 561 000 control console):
▪ Speed & position servo-control of a DC motor.
▪ Study of different correctors: P, PI, PID, cascade, state feedback, Z transform.
▪ Generation of new correctors by integrated C compiler....

Safety devices:
▪ Excitation current monitoring.
▪ Protection against short-circuits (short-proof, even at full load).
▪ Supervision of power supply: min 12 V / max 240 V before start.
▪ Load current control of the filter capacitor when powering up.
▪ Emergency stop if the reversible capacitor voltage exceeds 260 V.
▪ Monitoring of the current in the discharge transistor.
▪ Monitoring of the reversible capacitor voltage.
▪ Monitoring of the heat sink.

Control panel:
The control panel ensures the user's interface & the system control.

Optional:
▪ EP560200, D_CCA: Study of the servocontrol of DC motors ,
▪ EP560800, D_Scil: Automatic generator of real time correctors with Scilab/Xcos®.
