PARCOURIR : ACCUEIL > Electrical Engineering > Industrial IT > Microsystems Où Acheter ?

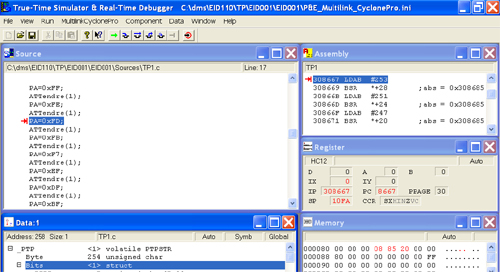

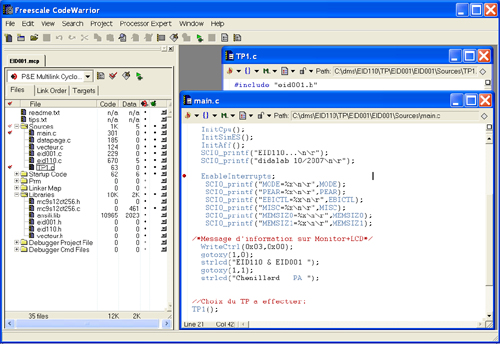

68HC12 microprocessor/microcontroller - Training board (ref: EID110000) Quantité : 1 2 3 4 5 Ajouter au devis Référence : EID 110 000 Specifications: Hardware: ▪ Architecture of one 8/16-bit micro-system, microprocessor-based, microcontroller, 68HC12 (fully compatible 68HC11 - Freescale Semiconductor®), clock frequency → 16 MHz. ▪ Storage: 256 Kbytes, EEPROM flash. ▪ EEPROM: 4 Kbytes. ▪ RAM: 8 bits, 12 + 128 Kbytes. ▪ Serial port: USB, RS232, SPI, I2C, CAN. ▪ 16-character ASCII LCD display. ▪ 5-pad keypad/joystick. ▪ PC/104 bus, giving access to many available input/output boards. ▪ 24-bit parallel port, 6 analog I & 4 O on 40-pt HE10, SPI port & I2C. Software: One JTAG probe enables to put the student in true industrial development situation, using CodeWarrior IDE (from Freescale Semiconductor®), providing the following features: ▪ PC editor. ▪ Cross assembler. ▪ Cross compiler. ▪ Debugger monitor: hard breakpoint, condition breakpoint, "C" step-by-step, assembler, registers state, storage area. Input/Outputs simulator, EID001000: In order to underscore the inputs/outputs of one microsystem & facilitate the student's first steps in programming, one Input/Output is provided. It includes: ▪ ON/OFF inputs (micro-system), 8 microswitchs. ▪ ON/OFF outputs (micro-system), 8 LEDs. ▪ Analog input (micro-system), 1 potentiometer. ▪ Analog output (micro-system), 1 LED with test point. ▪ 1x 7-segment display. ▪ 1 push-button with bounce-free logic for the interrupt implementation.

Produits associés ou complémentaires ... Inputs/Outputs simulator - Operative part (ref: EID001000)    Traffic lights simulator - Operative part (ref: EID002000)    MMI (graphic display device & 16-pad keypad) - Expansion board (ref: EID005000)    8 ON/OFF CAN LIN inputs - Expansion board (ref: EID050000)    4 ON/OFF CAN LIN outputs - Expansion board (ref: EID051000)    CAN LIN motor speed control - Expansion board (ref: EID052000)

Télécharger la documentation complète (Haute définition).

Quantité : 1 2 3 4 5 Ajouter au devis
