Single phase magnetic circuit : PED213730

Single phase magnetic circuit, constituted of high permeability sheet metal, section: 43 x 43 mm.

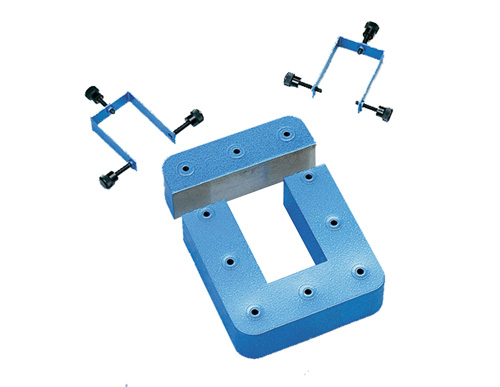

It is made of a “U”-shaped part & a removable part that shuts the circuit (locking device using 2 stirrups with screws). The rectified contact areas reduce losses at the maximum.

Power: about 200 W
Height: 190 mm – Width: 150 mm
Weight: 7,5 kg
