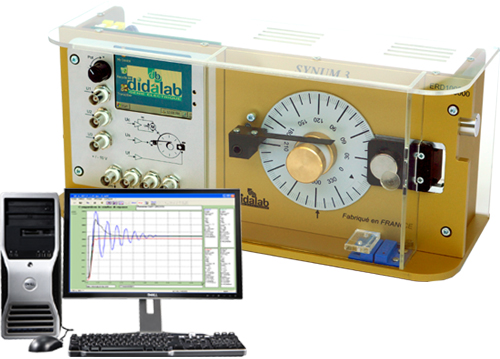

In-depth study of speed/position servo-systems - Training module (ref: ERD100000)

Référence : ERD 100 000

In-depth study of speed/position servo-systems - Training module (ref: ERD100000) 2/4

Details of practical works:

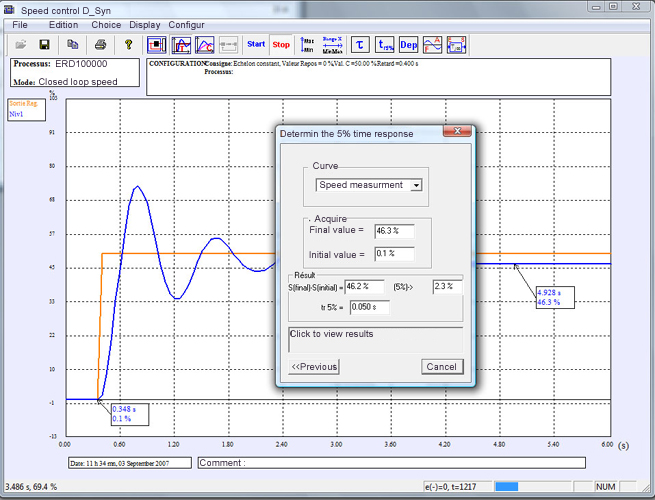

▪ Selection of the structure: speed & position open & closed loops.

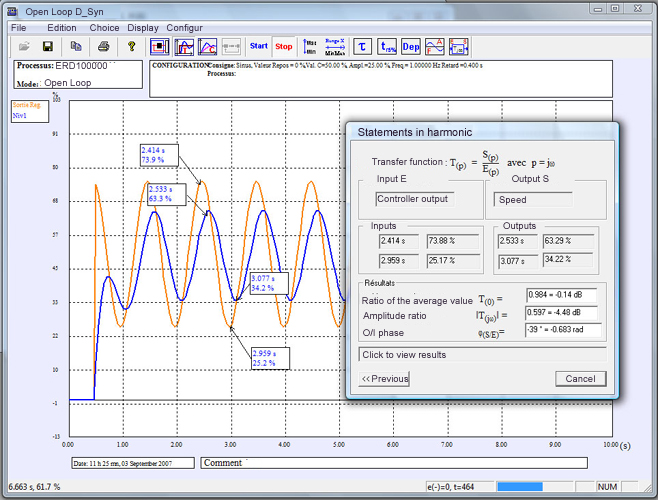

▪ Selection of the excitation mode: constant step, ramp, trapezoid, sine, internal or external setpoint monitoring (potentiometer).
▪ Selection of the power interface for the motor supply: voltage or current control.
▪ Selection of the corrector: P/PD/PI/PID ; ON/OFF; Digital ; cascade ; state feedback.

Optional:
Writing of new correctors by the use of D_Scil in linear and non linear systems.

Produits associés ou complémentaires ...

Télécharger la documentation complète (Haute définition).

In-depth study of speed/position servo-systems - Training module (ref: ERD100000) 3/4

In-depth study of speed/position servo-systems - Training module (ref: ERD100000) 4/4
